Product Information

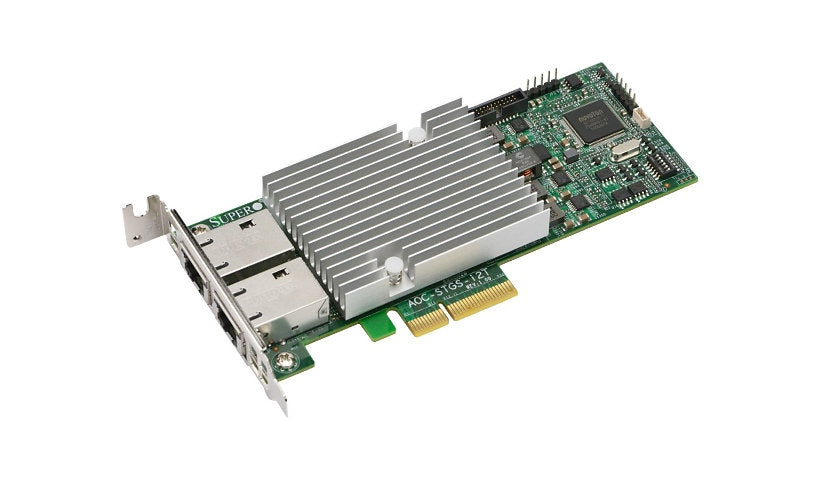

The Supermicro AOC-STGS-i2T is a low power, low profile dual port 10GBase-T network card on a PCIe 3.0 x4 interface, built on the Intel X550-AT2 controller with integrated MAC and PHY. It supports VXLAN and NVGRE, FCoE and iSCSI boot, Data Center Bridging, Intel Flow Director, DMA coalescing, Energy Efficient Ethernet and jumbo frames up to 15.5 KB, drawing about 11 W.
Key Features
- 2 x 10GBase-T RJ-45 ports
- Intel X550-AT2 controller
- PCIe 3.0 x4
- FCoE and iSCSI boot
- VXLAN and NVGRE
- Low profile card
Product Information
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: Supermicro
Model: AOC-STGS-i2T
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
Network Standard: TCP/IP, UDP/IP
Cable Type: Ethernet 10GBase-T
Data Transfer Rate: 10 GBps
Capacity: Jumbo frame size: 15.5 KB
Features: Anti-spoofing protection, Checksum offload support, Data Center Bridging (DCB), DMA Coalescing (DMAC), Energy Efficient Ethernet, Extended Message-Signaled Interrupts (MSI-X), FCoE boot, FCoE Coalescing and Direct Data Placement, FCoE CRC Offload, Intel Flow Director, IPv4 support, IPv6 support, iSCSI remote boot, Multi-mode I/O virtualization operations, Network Virtualization using Generic Routing Encapsulation (NVGRE), Packet filtering, PXE support, Receive Side Coalescing (RSC), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), TCP/IP checksum offload, Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq)
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Interface Provided: 2 x 10GBase-T - RJ-45
Network & Adapter Ports: 10Gb Ethernet / Fibre Channel over Ethernet (FCoE)
Host Interface: PCI Express 3.0 x4
Power
Power Consumption Operational: 11 watt
Memory and Processor
Processor Brand: Intel
Processor Number: X550-AT2
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Depth: 5.9 inch
Weight: 4.23 ounce
Certifications and Listing
Compliant Standards #2: IEEE 802.1Q, IEEE 802.3az
Compliant Standards: RoHS 6/6
Compliant Standards: IEEE 802.1Q, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
