Product Information

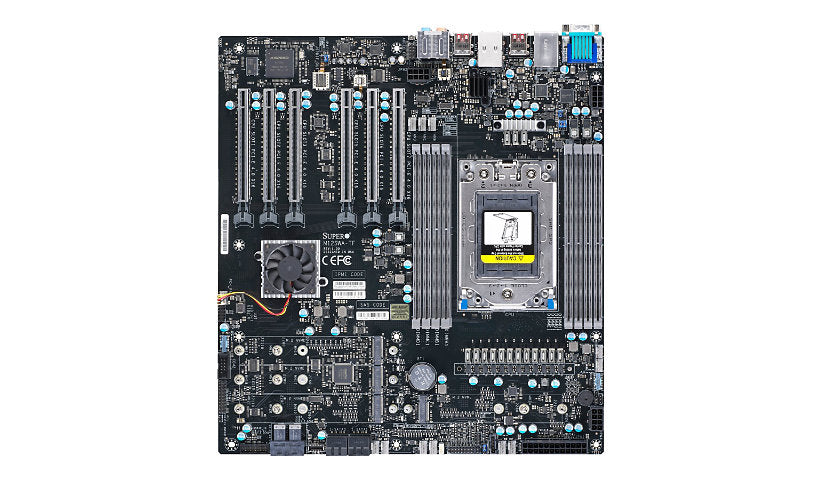

The Supermicro M12SWA-TF is an Extended ATX workstation board for AMD Ryzen Threadripper PRO processors up to 64 cores and 280 W on Socket sWRX8. It has eight DDR4 slots for up to 2 TB of registered ECC memory, six PCIe 4.0 x16 slots, four M.2 and two U.2 connectors, and 10 Gigabit plus Gigabit LAN with IPMI 2.0.
Key Features
- AMD WRX80 chipset, Socket sWRX8, Extended ATX
- 8 x DDR4, up to 2 TB RDIMM ECC or 256 GB unbuffered
- 6 x PCIe 4.0 x16 slots
- 4 x M.2 PCIe 4.0, 2 x U.2, 4 x SATA with RAID
- 10GbE (Marvell AQC113C) and GbE (Intel I210-AT), IPMI 2.0
- Realtek ALC1220 / ALC4050H 8-channel audio
Product Information
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: SUPERMICRO
Model: M12SWA-TF
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Features: 8-channel memory architecture
Connectivity
Network: 10 Gigabit Ethernet, Gigabit Ethernet
Audio Output: High Definition Audio (8-channel)
Output Type: Sound card
Expansion Slots: 1 x CPU, 6 x PCIe 4.0 x16, 8 x DIMM 288-pin (1.2 V)
Memory and Processor
Compatible Processors: Ryzen ThreadRipper PRO
Memory Details: 2 TB - registered - ECC, 256 GB - unbuffered - non-ECC
Controller Type: Marvell AQC113C / Intel I210-AT
Processor Socket: Socket sWRX8
Supported Memory Speed: 3200 MHz
Memory Slots: 8 DIMM slots
Mainboard Supported RAM: DDR4 SDRAM
Supported RAM (Registered or Buffered): Registered, Unbuffered
Supported RAM Integrity Check: ECC, Non-ECC
Storage Interfaces: PCIe -connectors: 2 x U.2 - RAID 0 / RAID 1, PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Chipset Type: AMD WRX80
Compatible Processors Comments: Supports CPUs with up to 64 cores, Maximum TDP 280 Watt
Audio Codec: Realtek ALC1220 / Realtek ALC4050H
Processor Brand: AMD
Processor Type: Ryzen Threadripper PRO
Processors Installed: 0
Max Memory Supported: 2 TB
Total Processor Supported: 1
Technical Information
Hardware Monitoring: Chassis fan tachometer, Chassis temperature, CPU core temperature, CPU core voltage, CPU overheating protection, System voltage
Included Software: SuperDoctor 5
BIOS Features: ACPI support, IPMI 2.0 support
Hardware Features: Chassis intrusion detection, WatchDog Timer
Sleep/Wake Up: Keyboard wake up
Form Factor (Motherboard): Extended ATX
Dimensions and Weight
Width: 12 inch
Depth: 13 inch
Certifications and Listing
Compliant Standards: High Definition Audio
