Product Information

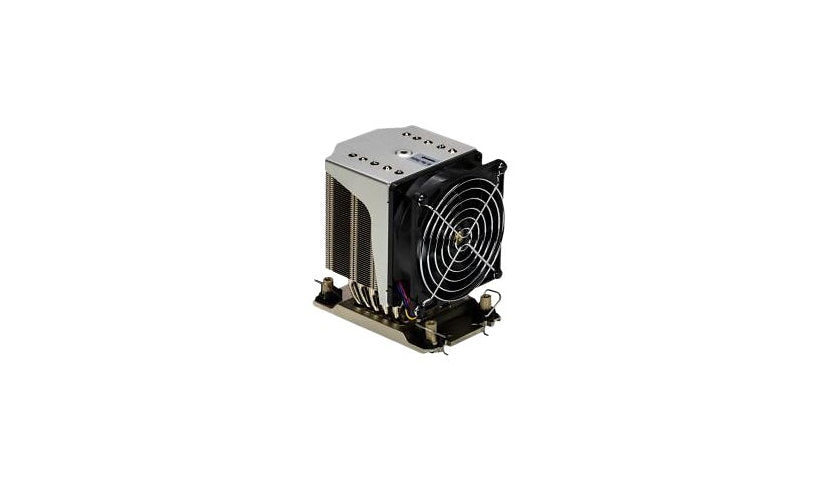

The Supermicro SNK-P0090AP4 is a 4U processor heatsink for Intel Xeon on the LGA4677 socket, rated for up to 350 W TDP. The spec lists it as active with a 92 mm fan at 4700 rpm, while the description calls it passive, so please confirm. It carries a 1 year limited warranty.
Key Features
- For Intel Xeon, LGA4677 Socket E
- Up to 350 W TDP
- 92 mm fan, 4700 rpm per spec
- 4U form factor
- 121,457 hour MTBF, 43 dB
- 1 year limited warranty listed
Product Information
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: Supermicro
Model: SNK-P0090AP4
Product Type: Processor heatsink
Category of Accessory: Cooling and fans, Desktop computer and server accessories
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Features: Active, Up to 350W Thermal Design Power (TDP)
Power
Rated Voltage: 12 volt
Memory and Processor
Compatible Processor Socket: LGA4677 Socket E
Technical Information
Fan Speed (rpm): 4700 rpm
Noise Levels: 43 dB
Processor Compatibility: Xeon
MTBF: 121,457 hour(s)
Physical Characteristics
Fan Diameter: 92 mm
Height (Rack Units): 4
Dimensions and Weight
Heatsink Dimensions: 3.62 in x 3.62 in x 0.98 in
Certifications and Listing
Compliant Standards: REACH, RoHS
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty: - 1 year
