Product Information

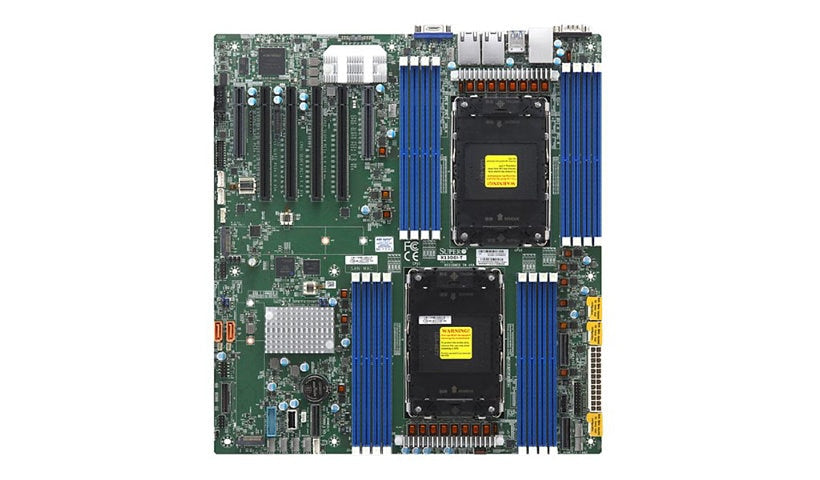

The Supermicro X13DEI-T is a dual socket Extended ATX server board for Intel processors on LGA4677 (no CPU included). It has sixteen DDR5 RDIMM slots for up to 4 TB of ECC memory, four PCIe 5.0 x16 and two x8 slots, ten SATA ports and dual 10 Gigabit LAN.
Key Features
- Intel C741 chipset, 2 x LGA4677, Extended ATX
- 16 x DDR5 RDIMM/3DS ECC, up to 4 TB, up to 5600 MHz
- 4 x PCIe 5.0 x16, 2 x PCIe 5.0 x8
- 2 x M.2 PCIe 4.0, 10 x SATA
- 2 x 10GbE (Broadcom BCM57416)
- No CPU included, SuperDoctor 5 software
Product Information
Brand: Supermicro
Manufacturer: Super Micro Computer Inc
Product Line: SUPERMICRO
Model: X13DEI-T
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity
Network: 2 x 10 Gigabit Ethernet
Output Type: None
Expansion Slots: 16 x DIMM 288-pin (1.1 V), 2 x CPU, 2 x M.2 socket (2280/22110 M.2 Key M slot), 2 x PCIe 5.0 x8, 4 x PCIe 5.0 x16
Memory and Processor
Controller Type: Broadcom BCM57416
Processor Socket: LGA4677 Socket-E
Supported Memory Speed: 4000 MHz, 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz
Memory Slots: 16 DIMM slots
Mainboard Supported RAM: DDR5 SDRAM
Supported RAM (Registered or Buffered): 3DS-RDIMM, Registered
Supported RAM Integrity Check: ECC
Storage Interfaces: PCIe 4.0 -connectors: 2 x M.2, SATA-600 -connectors: 10 x 7pin SATA
Chipset Type: Intel C741
Processor Brand: Intel
Processor Type: No CPU
Processors Installed: 0
Max Memory Supported: 4 TB
Total Processor Supported: 2
Technical Information
Hardware Monitoring: CPU overheating protection
Included Software: SuperDoctor 5
BIOS Type: AMI
BIOS Features: ACPI 6.4 support, PCI FW 3.2 support, SMBIOS 2.8 support, SMBIOS 3.5 support, UEFI 2.8 support, UEFI BIOS
Form Factor (Motherboard): Extended ATX
Dimensions and Weight
Width: 12.1 inch
Depth: 13.1 inch
