Product Information

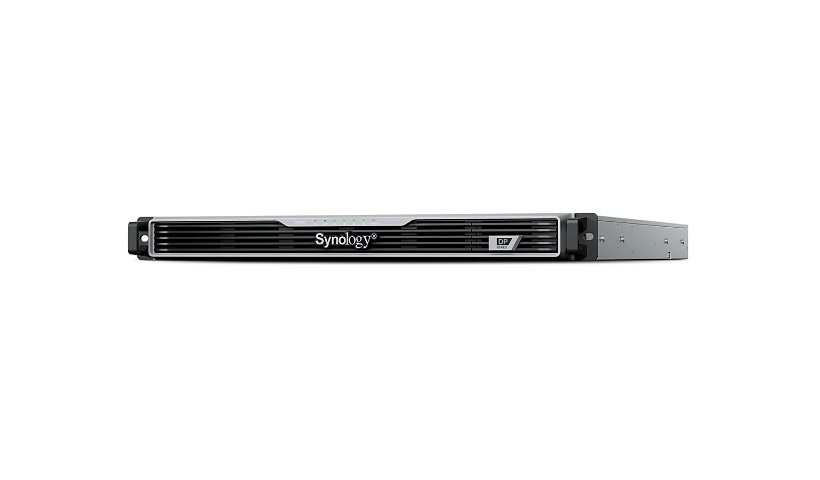

The Synology ActiveProtect DP5200 is a 1U rack mount backup appliance, listed as a NAS server, for protecting and managing business data on premises. It has a 6-core Intel Xeon D, 16 GB RAM (64 GB max) and four 12 TB 3.5 inch SATA HDDs in a factory configured RAID 5 array, plus two 800 GB M.2 SSDs, for 49.5 TB listed total. All 4 bays are filled. It offers gigabit and 10 GbE networking, Active Directory and LDAP support, WORM protection and Synology ActiveProtect Manager. It has dual internal power supplies and ships with 2 power cables, an accessory pack and a front cover.
Key Features
- 4 x 12 TB HDD, RAID 5
- 2 x 800 GB M.2 SSD
- 6-core Xeon D, 16 GB RAM
- 1 GbE and 10 GbE
- WORM, AD and LDAP
- 1U, dual power supplies
Product Information
Operation Type: Internal power supply
Brand: Synology
Manufacturer: Synology
Product Line: Synology ActiveProtect Appliance
Model: DP5200
Packaged Quantity: 1
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Active Directory, LDAP
Features: Write-once-read-many (WORM)
Connectivity
Connectors: RAID
Expansion Bays: 4 (total) / 0 (free) - 3.5"
Memory and Processor
Hard Drive Features: RAID 5 - factory configured
Cores: 6-core
Hard Drive (2nd) Form Factor: M.2
Hard Drive Form Factor (metric): 8.9 cm
RAID Levels: RAID 1, RAID 5
Hard Drive (2nd) Installed: 2
Hard Drive Capacity (2nd): 800 GB
Processor Brand: Intel
Processor Type: Xeon D
RAM Installed: 16 GB
Max Memory Supported: 64 GB
Hard Drive Capacity: 12 TB
Hard Drive Form Factor: 3.5"
Port Expansion Hard Drive Type: HDD
Drive Interface: Serial ATA-600
Storage (2nd): SSD
Storage (3rd): None
Optical Drive Type: None
Technical Information
Storage Operating System: Synology ActiveProtect Manager
Total Storage Capacity: 49.5 TB
Network Storage Type: NAS server
Host Connectivity (compact list): Gigabit Ethernet / 10 Gigabit Ethernet
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 8 - 80% RH
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Supported Devices: 4
Installed Devices/Modules: 4
Installed Quantity: 4
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 25 inch
Weight: 26.9 lbs
Included Items
Included Accessories: 2 x power cables, Accessory pack, Front cover
Cables: 2 x power cable (C13-C14)
Warranty
Service Activation: No
