Product Information

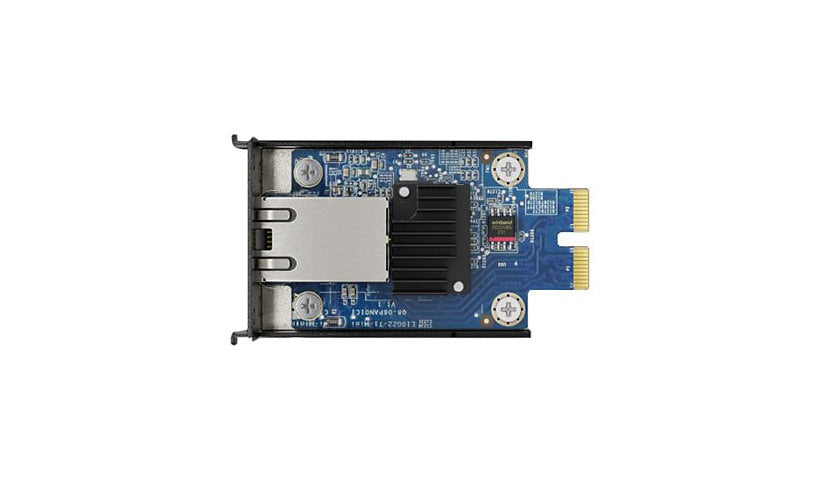

The Synology E10G22-T1-Mini is a compact network upgrade module that adds one multi-gig RJ-45 port to a compatible Synology system. The port runs at 100M, 1G, 2.5G, 5G or 10 Gigabit Ethernet with auto-negotiation, and supports 9 KB jumbo frames, flow control and offloads such as TSO, LSO, GRO, RSS and TCP/UDP checksum offload. Please confirm your Synology model supports this module slot before ordering.
Key Features
- 1 x 10GBase-T RJ-45 port
- 100M to 10G multi-gig speeds
- 9 KB jumbo frames
- TSO, LSO and RSS offloads
- Plug-in upgrade module
- For supported Synology units
Product Information
Brand: Synology
Manufacturer: Synology
Product Line: Synology
Model: E10G22-T1-Mini
Product Type: Expansion module
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T
Data Transfer Rate: 10 GBps
Features: 9 KB Jumbo Frame, Auto-negotiation, Flow control, Full duplex mode, Generic receive offload (GRO), Generic segmentation offload (GSO), Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), TCP/IP checksum offload, UDP/IP checksum offload
Connectivity
Port Quantity: 1
Interface Provided: 1 x 10GBase-T - RJ-45
Network & Adapter Ports: 100M/1G/2.5G/5G/10 Gigabit Ethernet
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 8 - 80% RH
Physical Characteristics
Form Factor: Plug-In Module
Dimensions and Weight
Height: 1 inch
Width: 1.8 inch
Depth: 3 inch
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
