Product Information

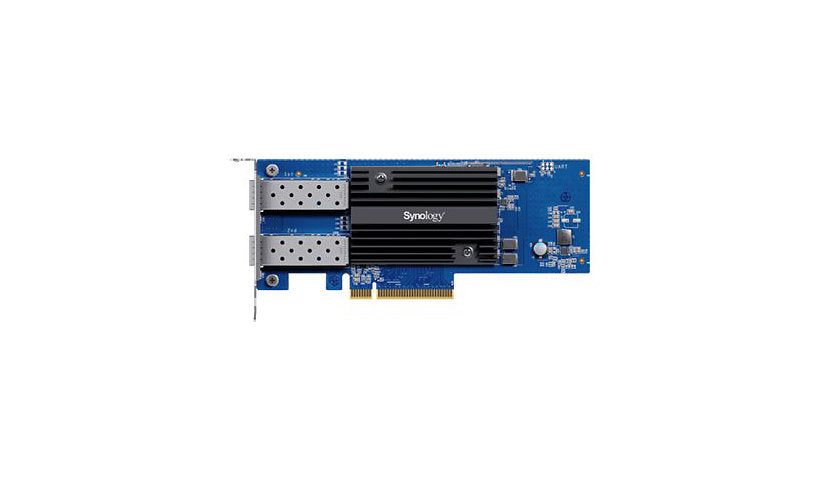

The Synology E10G30-F2 is a dual port 10 Gigabit SFP+ card for PCIe 3.0 x8 slots, built to raise network throughput on Synology systems. It supports link aggregation and load balancing, SR-IOV, 9 KB jumbo frames and CPU offloads including TSO, LRO, GSO, RSS, TSS and TCP/UDP checksum offload. It is low profile, includes full height and low profile brackets, and operates from 0 to 40 °C.
Key Features
- 2 x 10GbE SFP+ ports
- PCIe 3.0 x8
- Link aggregation support
- SR-IOV for virtualization
- 9 KB jumbo frames
- Low profile, both brackets
Product Information
Brand: Synology
Manufacturer: Synology
Product Line: Synology
Model: E10G30-F2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Black, Blue, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Data Transfer Rate: 10 GBps
Features: 9 KB Jumbo Frame, CPU offloading, Generic segmentation offload (GSO), Large Receive Offload (LRO), Link Aggregation, Load balancing, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), TCP/IP checksum offload, Transmit Side Scaling (TSS), UDP/IP checksum offload
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet - SFP+
Network & Adapter Ports: 10Gb Ethernet SFP+
Host Interface: PCI Express 3.0 x8
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Width: 0.7 inch
Depth: 6.6 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards: IEEE 802.3ad (LACP), IEEE 802.3ae
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
