Product Information

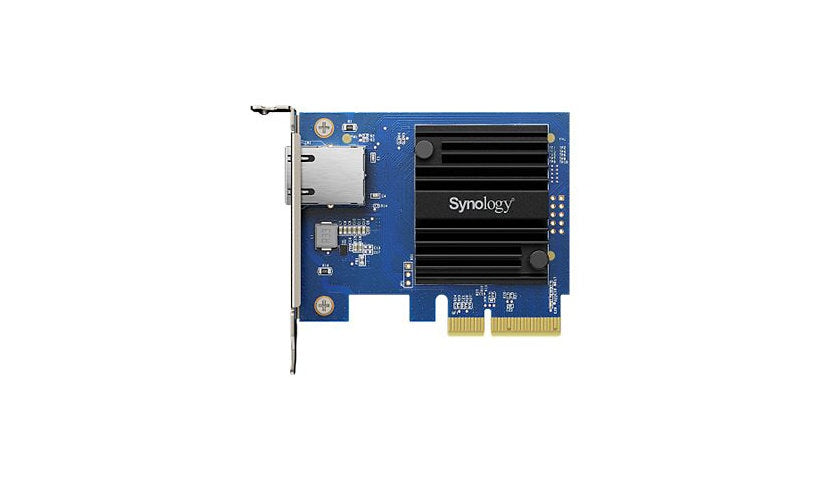

The Synology E10G30-T1 is a single port 10GBase-T network card on a PCIe 4.0 x8 interface, adding 10 Gigabit Ethernet to a Synology system. It supports flow control, jumbo frames up to 9,000 bytes and TCP/UDP checksum offload. It is low profile, includes full height and low profile brackets, and operates from 0 to 40 °C.
Key Features
- 1 x 10GBase-T RJ-45 port
- PCIe 4.0 x8
- 10 Gbps data rate
- Jumbo frames up to 9,000 bytes
- Checksum offload
- Low profile, both brackets
Product Information
Brand: Synology
Manufacturer: Sony Computing and Video
Product Line: Synology
Model: E10G30-T1
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Black, Blue, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Cable Type: Ethernet 10GBase-T
Data Transfer Rate: 10 GBps
Features: Flow control, Jumbo Frames support (up to 9000 bytes), TCP/IP checksum offload, UDP/IP checksum offload
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 1
Interface Provided: 1 x 10GBase-T - RJ-45
Network & Adapter Ports: 10Gb Ethernet
Host Interface: PCI Express 4.0 x8
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 3.2 inch
Width: 0.5 inch
Depth: 2.7 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
