Product Information

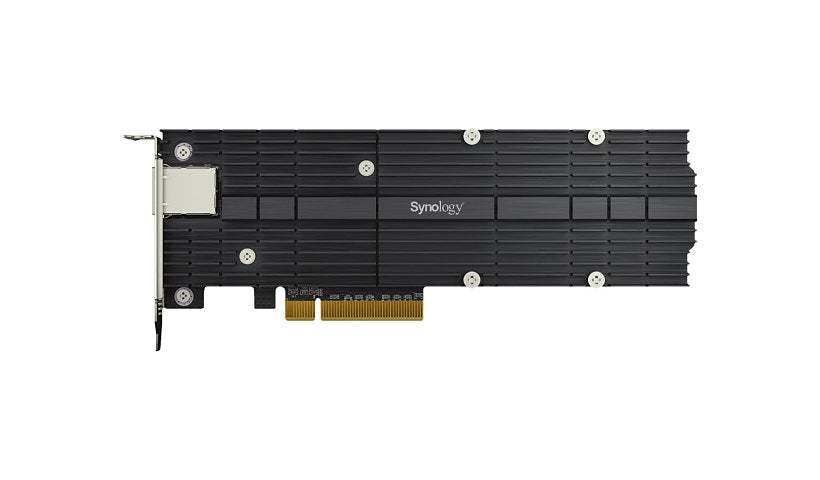

The Synology E10M20-T1 combines one 10GBase-T RJ-45 port with two M.2 SSD slots on a single PCIe 3.0 x8 card, so a Synology NAS can gain both network bandwidth and SSD cache from one expansion slot. The port supports auto-negotiation, flow control, jumbo frames up to 9,000 bytes and TCP/UDP checksum offload. It is low profile and includes full height and low profile brackets. Listed systems include the DS1618+, DS1819+, DS2419+, DS3018xs, RS820+, RS820RP+, RS2818RP+, SA3400 and SA3600.
Key Features
- 1 x 10GBase-T RJ-45 port
- 2 x M.2 SSD slots
- PCIe 3.0 x8
- Jumbo frames up to 9,000 bytes
- Low profile, both brackets
- For selected Synology NAS
Product Information
Brand: Synology
Manufacturer: Synology
Product Line: Synology
Model: E10M20-T1
Product Type: Network adapter
Compatibility Specs: Synology RS820RP+, SA3400, SA3600 ¦ Synology Disk Station DS1618+, DS1819+, DS2419+, DS3018xs ¦ Synology RackStation RS2818RP+, RS820+, RS820RP+
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Cable Type: Ethernet 10GBase-T
Data Transfer Rate: 10 GBps
Features: Auto-negotiation, Flow control, Full duplex mode, Jumbo Frames support (up to 9000 bytes), TCP/IP checksum offload, UDP/IP checksum offload
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 1
Interface Provided: 1 x 10GBase-T - RJ-45
Network & Adapter Ports: 10Gb Ethernet
Host Interface: PCI Express 3.0 x8
Expansion Slots: 2 (total) / 2 (free) x M.2 Card
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.8 inch
Width: 0.7 inch
Depth: 7.9 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
