Product Information

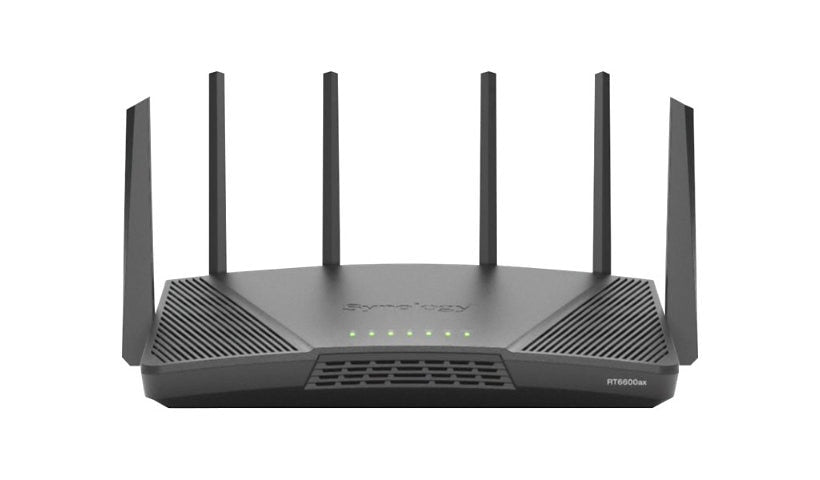

The Synology RT6600AX is a tri band Wi-Fi 6 router with one 2.4 GHz and two 5 GHz radios, up to 4800 Mbps on the high 5 GHz band. It has a 2.5GbE WAN/LAN port, a Gigabit WAN port, three Gigabit LAN ports and USB 3.2, running on a 1.8 GHz quad core CPU with 1 GB of RAM.
Key Features
- Wi-Fi 6 tri band, 600 + 1200 + 4800 Mbps
- 1 x 2.5GbE WAN/LAN, 1 x GbE WAN, 3 x GbE LAN
- USB 3.2 Gen 1
- OpenVPN, L2TP, PPTP server and client
- QoS, DoS protection, 5 VLANs
- Quad core 1.8 GHz, 1 GB RAM
Product Information
Brand: Synology
Manufacturer: Synology
Product Line: Synology
Model: RT6600AX
Product Type: Wireless router
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, FTP, FTPS, L2TP, PPTP
Bridge & Router: Maximum data rate (2.4 GHz): 600 Mbps, Maximum data rate (5 GHz High Band): 4800 Mbps, Maximum data rate (5 GHz Low Band): 1200 Mbps
Capacity: Maximum number of VLANs: 5
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz (1 band) / 5 GHz (2 bands)
Key Features: USB port, VPN support
Features: 2T2R MIMO technology, 4T4R MIMO technology, Denial of Service (DoS) protection, DHCP server, Dynamic DNS client, Dynamic DNS server, L2TP support, OpenVPN client, OpenVPN server, Port forwarding, Port triggering, PPTP client, PPTP server, Quality of Service (QoS), Syslog support, VPN passthrough, Wake On LAN (WOL), WPS button
Connectivity
Interface Provided: LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 3.2 Gen 1: 1 x, WAN / LAN: 1 x 2.5GBase-T - RJ-45, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
WAN Ports Quantity: 2
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Memory and Processor
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 1 GB
Memory Technology: DDR3 SDRAM
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Status, WAN, Wi-Fi
Dimensions and Weight
Height: 7.9 inch
Width: 12.6 inch
Depth: 6.9 inch
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards #2: BSMI, FCC, iDA, JATE, NCC, RCM, RoHS, TELEC, UKCA, VCCI
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, UPnP
Compliant Standards: BSMI, FCC, iDA, JATE, NCC, RCM, RoHS, TELEC, UKCA, VCCI
Warranty
Service Activation: No
