Product Information

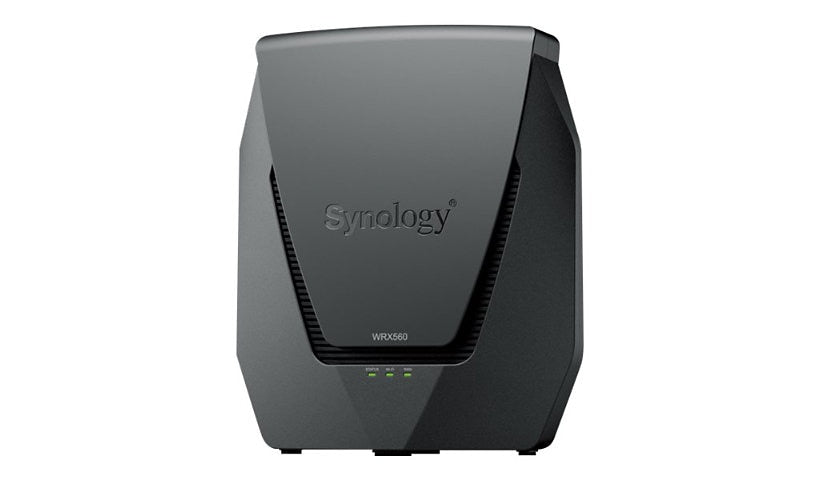

The Synology WRX560 is a dual band Wi-Fi 6 router running Synology Router Manager, with a 2.5GbE WAN/LAN port, three Gigabit LAN ports and a Gigabit WAN port. It supports mesh, up to 150 concurrent users, 10 SSIDs and parental controls, powered by a 1.4 GHz processor and 512 MB of DDR4 RAM.
Key Features
- Wi-Fi 6, up to 2400 Mbps on 5 GHz and 600 Mbps on 2.4 GHz
- 1 x 2.5GbE WAN/LAN, 1 x GbE WAN, 3 x GbE LAN
- Mesh support, dual WAN, USB 3.2 Gen 1
- Up to 150 users, 10 SSIDs, 5 VLANs
- WPA3, OpenVPN, IPsec, L2TP
- 1.4 GHz CPU, 512 MB DDR4, 6 internal antennas
Product Information
Brand: Synology
Manufacturer: Synology
Product Line: Synology
Model: WRX560
Product Type: Wireless router
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 802.11ax, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: CIFS, DHCP, DS-Lite, FTP, FTPS, IPSec, IPv6, L2TP, LPR, OpenVPN, PPPoE, PPTP, SMB
Remote Management: IPP, SNMP, SSH
Routing Protocol: IGMP
Bridge & Router: Maximum data rate (2.4 GHz): 600 Mbps, Maximum data rate (5 GHz): 2400 Mbps
Encryption: Opportunistic Wireless Encryption (OWE), SSL, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPS2
Data Transfer Rate: 3 GBps
Capacity: IPv4 routes (static): 100, IPv6 routes (static): 100, Maximum devices on per MAC filter: 256, Maximum DHCP reservations: 500, Maximum MAC filters: 64, Maximum number of concurrent users: 150, Maximum number of configured SSIDs: 10, Maximum number of VLANs: 5
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac/ax
Antennas: 6
Mesh Networking: Yes
Directivity: Omni-directional
Key Features: Firewall, USB port, VPN support
Features: 2-factor authentication, 2T2R MIMO technology, 3G/4G USB Dongle Support, 4T4R MIMO technology, Access Point operational mode, Android tethering, Beamforming technology, Cloud station server, DHCP client, DHCP server, DMZ support, DNS server, DoS attack prevention, Dual band, Dual WAN connection, Dynamic Frequency Selection (DFS), E-mail notification, FTP server, Guest Network, iPhone tethering, NAT loopback, NAT support, Parental control, Policy route, Port forwarding, Port triggering, Primary Wi-Fi point, Push notification, Quad-core CPU, Quality of Service (QoS), RADIUS Server, Reset button, Router mode, Schedule on/off, Smart Connect, SMS alert, Static route, Time machine backup, Traffic Control, Traffic monitoring, Traffic report, VLAN segmentation, VPN client, VPN passthrough, VPN Plus Server, VPN Server, Wake On LAN (WOL), Web Filtering, WebDAV server support, Wi-Fi on/off button, Wi-Fi point, WPS button
Connectivity
Interface Provided: LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 3.2 Gen 1: 1 x 9 pin USB Type A, WAN / LAN: 1 x 2.5GBase-T - RJ-45, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
WAN Ports Quantity: 2
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Memory and Processor
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 512 megabyte
Memory Technology: DDR4 SDRAM
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 8 - 80% RH
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Status, WAN, Wi-Fi
Dimensions and Weight
Height: 9.2 inch
Width: 7.6 inch
Depth: 2.6 inch
Included Items
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, UPnP, Wi-Fi CERTIFIED
Warranty
Service Activation: No
