Product Information

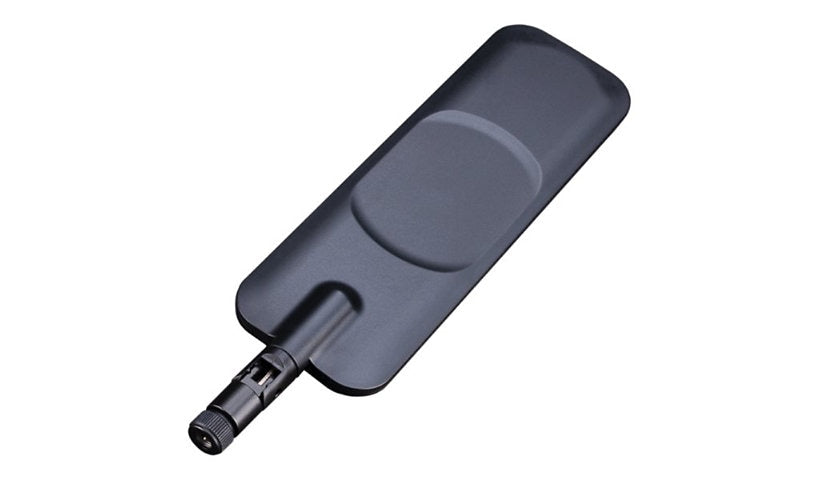

From Taoglas' Apex IV line, the TG.46 is a ground plane independent hinged dipole antenna covering cellular bands from 2G to 5G plus Wi-Fi up to 5925 MHz. It is about 8.6 in (21.8 cm) long, terminal mounts and has an SMA male connector in a UV resistant PC/ABS body.
Key Features
- 2G / 3G / 4G / 5G + Wi-Fi
- Up to 5925 MHz
- Hinged dipole, omni
- Ground plane independent
- SMA male
- About 8.6 in long
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Apex IV
Model: TG.46
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Placement: Terminal mount
Antenna Compatibility: 2G, 3G, 4G, 5G, GPRS, GPS, GSM, HSPA, LTE, UMTS, Wi-Fi
Frequency Range: 1427 - 1518 MHz, 1710 - 2200 MHz, 2300 - 2690 MHz, 3300 - 4200 MHz, 450 - 470 MHz, 5150 - 5925 MHz, 617 - 698 MHz, 698 - 806 MHz, 824 - 960 MHz
Signaling Type: Cellular, IoT, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dipole
Antenna Features: Ground plane independent, Hinged, Linear polarization, RoHS
Max Power: 10 watt
Physical Characteristics
Materials: PC/ABS, UV-resistant plastic
Dimensions and Weight
Antenna Length: 8.6 inch
Height: 8.6 inch
Width: 2.3 inch
Depth: 0.3 inch
Weight: 2.65 ounce
