Product Information

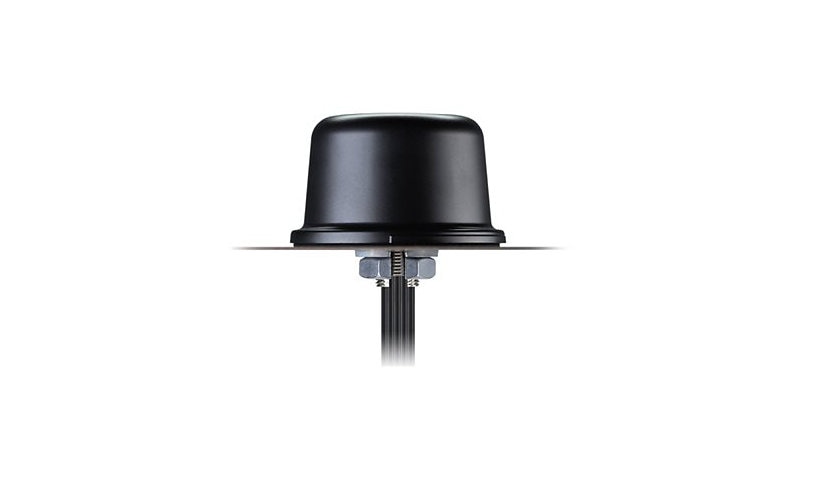

The Taoglas Colosseum MA850 is a low profile, IP69K permanent mount dome antenna combining 2x2 MIMO cellular for 2G through 5G, 2x2 Wi-Fi and a multi constellation GNSS element (GPS, GLONASS, Galileo, BeiDou, QZSS). It has two SMA cellular, two RP-SMA Wi-Fi and one SMA GNSS lead on 1 ft cables, in an ASA and zinc alloy body.
Key Features
- 5-in-1: 2 cellular, 2 Wi-Fi, GNSS
- 617 MHz to 5925 MHz
- Multi constellation GNSS
- IP69K waterproof
- 1 ft cables, SMA / RP-SMA
- Permanent mount
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Colosseum
Model: MA850
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Placement: Permanent mount
Antenna Compatibility: 2G, 3G, 4G, 5G, BeiDou, GALILEO, GLONASS, GPS, LTE, QZSS, SBAS, Wi-Fi
Frequency Range: 1427 - 1518 MHz, 1710 - 2200 MHz, 2.4 - 2.5 GHz, 2300 - 2690 MHz, 3300 - 4200 MHz, 4.9 - 5.85 GHz, 5150 - 5925 MHz, 617 - 698 MHz, 698 - 806 MHz, 824 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Connectivity
Connectors: 2 x cellular antenna - SMA (male), 2 x Wi-Fi antenna - RP-SMA (male), GPS antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dome
Antenna Features: IP69K, Linear polarization, Low profile, MIMO technology, Right-hand circular polarization (RHCP), RoHS, Waterproof
Physical Characteristics
Materials: ASA plastic, Zinc alloy base
Dimensions and Weight
Height: 2.3 inch
Width: 3.7 inch
Depth: 3.7 inch
Weight: 8.82 ounce
Included Items
Cables: 5 x antenna cable - 1 ft
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
