Product Information

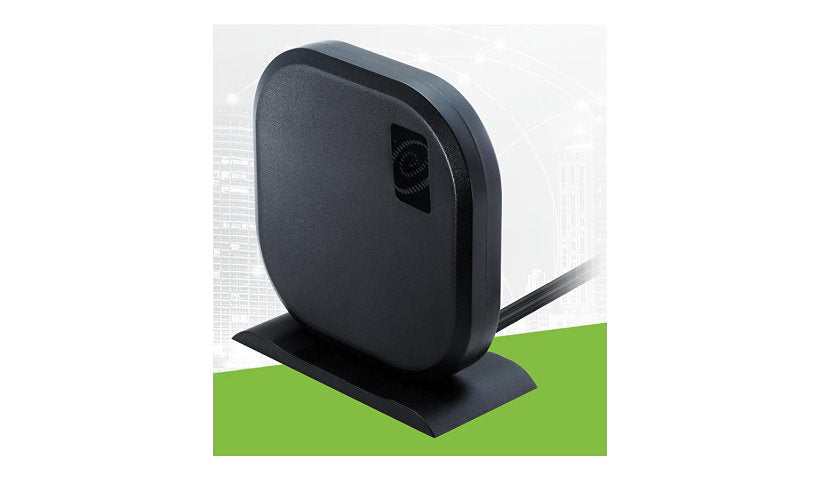

The Taoglas Gemini LMA101 is a 2x2 MIMO plate antenna for 2G through 5G and Wi-Fi bands from 600 to 6000 MHz with 3 dBi gain. It is IP65 and IP67 rated, sits on a desk or stand, mounts magnetically or on a wall, and has SMA cables (3.3 ft) plus screws, wall studs and a stand.
Key Features
- 2x2 MIMO cellular
- 600 to 6000 MHz
- 3 dBi plate
- IP65 / IP67
- SMA, 3.3 ft cables
- Desk, magnetic or wall mount
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Gemini
Model: LMA101
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Gain: 3 dBi
Antenna Placement: Desktop, Magnetic mountable, Wall-mountable
Antenna Compatibility: 2G, 3G, 4G, 5G, LTE, Wi-Fi
Frequency Range: 1427 - 1518 MHz, 1710 - 2200 MHz, 2490 - 2690 MHz, 3300 - 5000 MHz, 5150 - 5925 MHz, 600 - 6000 MHz, 617 - 698 MHz, 698 - 806 MHz, 824 - 960 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Connectivity
Connectors: 1 x antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Plate
Antenna Features: 2x MIMO, IP65, IP67, Linear polarization, RoHS
Physical Characteristics
Materials: ABS plastic, Polycarbonate (PC)
Dimensions and Weight
Height: 1.4 inch
Width: 6.5 inch
Depth: 6.5 inch
Weight: 14.11 ounce
Included Items
Accessories Included: 2 screws, 2 wall mount studs, Stand
Cables: 2 x SMA cable - 3.3 ft
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
