Product Information

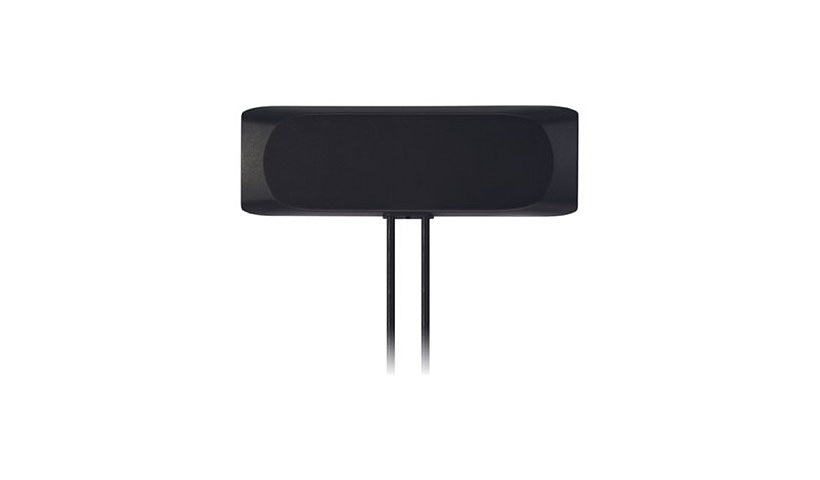

The Taoglas Genesis MA241 is a ground plane independent 2x2 MIMO cellular antenna covering 600 to 5925 MHz for 2G through 5G. It is IP65 waterproof, mounts with adhesive and has two SMA male connectors on 6.6 ft cables.
Key Features
- 2x2 MIMO cellular
- 600 to 5925 MHz
- 2G / 3G / 4G / 5G
- 2 x SMA male, 6.6 ft cables
- IP65 waterproof
- Adhesive mount
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Genesis
Model: MA241
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Placement: Adhesive mount
Antenna Compatibility: 2G, 3G, 4G, 5G, LTE
Frequency Range: 1710 - 2200 MHz, 2400 - 2485 MHz, 2490 - 2690 MHz, 3300 - 5000 MHz, 5150 - 5925 MHz, 600 - 960 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x cellular antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Features: 2x MIMO, Ground plane independent, IP65, Linear polarization, RoHS, VSWR < 3.5:1, Waterproof
Physical Characteristics
Materials: PC/ABS
Dimensions and Weight
Height: 2.7 inch
Width: 8.1 inch
Depth: 0.5 inch
Weight: 7.41 ounce
Included Items
Cables: 2 x antenna cable - 6.6 ft
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
