Product Information

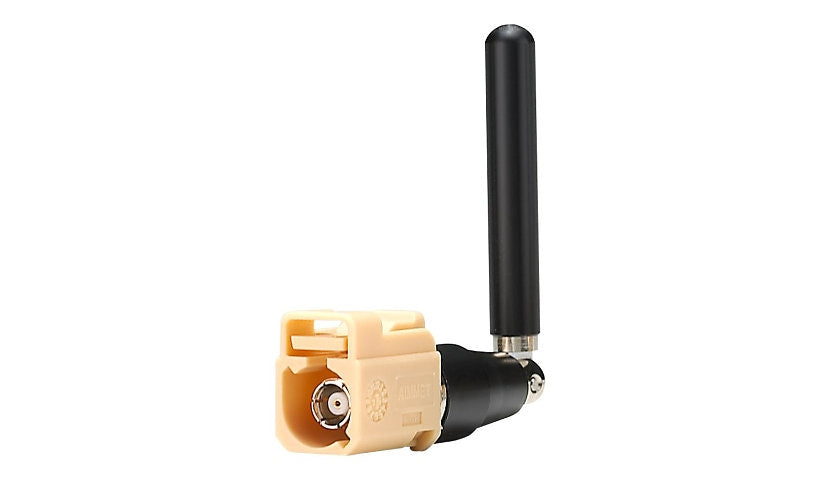

The Taoglas GW.05 is a compact terminal mount monopole antenna for Wi-Fi 6E, Bluetooth and Zigbee, covering 2.4, 5 and 6 GHz with 3 dBi gain. It uses a FAKRA I connector and a 2.7 in POM body.
Key Features
- Wi-Fi 2.4 / 5 / 6 GHz
- Bluetooth, Zigbee
- 3 dBi omni
- FAKRA I connector
- Terminal mount
- About 2.7 in tall
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas
Model: GW.05
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Gain: 3 dBi
Antenna Placement: Terminal mount
Antenna Compatibility: Bluetooth, Wi-Fi, ZigBee
Frequency Range: 2400 - 2500 MHz, 5.15 - 5.85 GHz, 5.925 - 7.125 GHz
Signaling Type: Bluetooth, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - FAKRA I connector
Technical Information
Impedance: 50 ohm
Antenna Form Type: Monopole
Antenna Features: Linear polarization, VSWR 2:1
Max Power: 10 watt
Physical Characteristics
Materials: Polyoxymethylene (POM)
Dimensions and Weight
Height: 2.7 inch
Width: 0.4 inch
Depth: 0.4 inch
Weight: 0.28 ounce
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
