Product Information

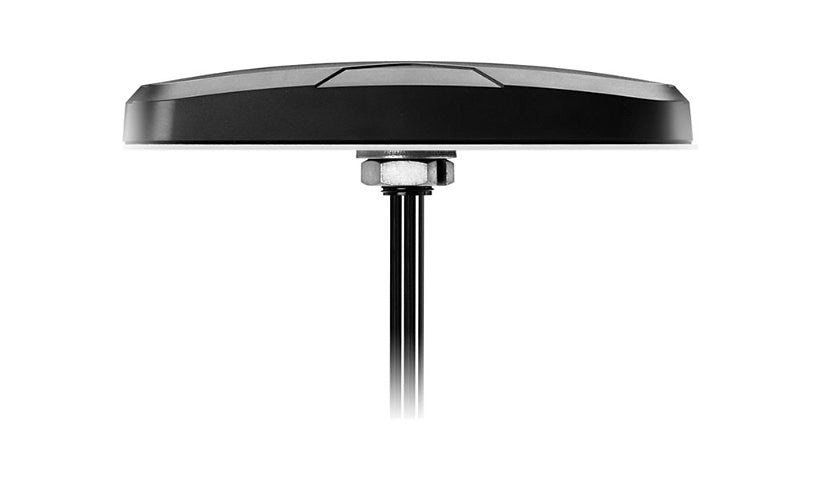

The Taoglas Monsoon MA170 is a rugged, ground plane independent 2x2 MIMO cellular antenna for 2G, 3G, 4G and LTE, covering 698 to 5925 MHz. It is IP69K waterproof and shock resistant, has two SMA male leads on 10 ft cables and screw mounts permanently.
Key Features
- 2x2 MIMO cellular
- 698 to 5925 MHz
- IP69K, shock resistant
- 2 x SMA male, 10 ft cables
- Ground plane independent
- Permanent screw mount
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Monsoon
Model: MA170
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Placement: Permanent mount, Screw mount
Antenna Compatibility: 2G, 3G, 4G, LTE
Frequency Range: 1427 - 1518 MHz, 1710 - 2200 MHz, 2300 - 2690 MHz, 3300 - 5000 MHz, 5150 - 5925 MHz, 698 - 824 MHz, 824 - 960 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x cellular antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Features: Ground plane independent, IP69K, Linear polarization, RoHS, Shock-resistant, Waterproof
Max Power: 10 watt
Physical Characteristics
Materials: Acrylonitrile butadiene styrene (ABS), Nickel-plated steel, Polycarbonate (PC)
Dimensions and Weight
Height: 1.2 inch
Width: 2.7 inch
Depth: 8 inch
Weight: 19.4 ounce
Included Items
Cables: 2 x antenna cable - 10 ft
Warranty
Service Activation: No
