Product Information

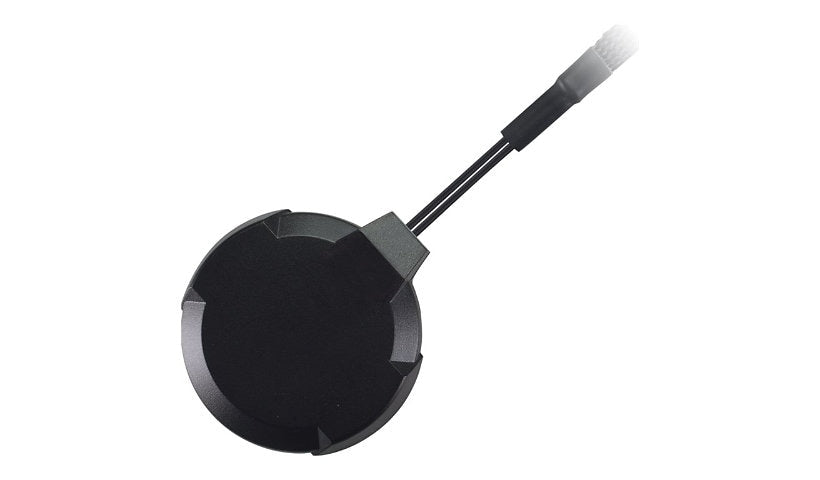

The Taoglas Optimus MA210 is a low profile adhesive mount MIMO Wi-Fi antenna covering 2.4, 5 and 6 GHz up to 7.125 GHz with 2.9 dBi gain. It is IP67 rated, uses RP-SMA male connectors and has an omni pattern. The listed cable length looks wrong, so please confirm.
Key Features
- Wi-Fi 2.4 / 5 / 6 GHz
- MIMO, 2.9 dBi omni
- RP-SMA male
- IP67 rated
- Adhesive mount
- Low profile, 0.5 in
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Optimus
Model: MA210
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Gain: 2.9 dBi
Antenna Placement: Adhesive mount
Antenna Compatibility: Wi-Fi
Frequency Range: 2.4 GHz, 5.8 GHz, 7.125 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - RP-SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Features: IP67, MIMO technology, REACH, Right-hand circular polarization (RHCP), RoHS, VSWR = 2.0
Dimensions and Weight
Height: 0.5 inch
Width: 2.5 inch
Depth: 2.7 inch
Weight: 10.23 ounce
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
