Product Information

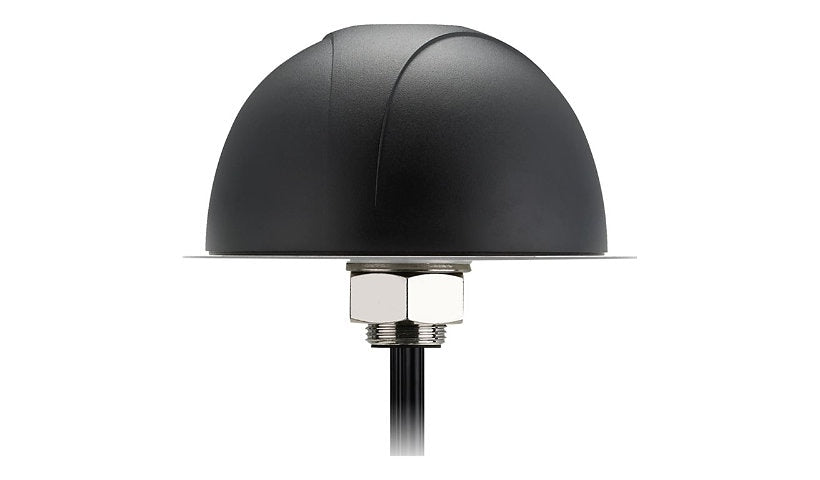

The Taoglas Pantheon MA752.B is an IP67 waterproof 5-in-1 omni antenna with 2x2 MIMO cellular for 2G through 5G, 2x2 Wi-Fi and a GNSS element with SAW filter. It has two SMA cellular, two RP-SMA Wi-Fi and one SMA GNSS lead on 10 ft cables.
Key Features
- 5-in-1: 2 cellular, 2 Wi-Fi, GNSS
- 2G to 5G cellular
- GNSS with SAW filter
- IP67 waterproof
- 10 ft cables
- SMA / RP-SMA male
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Pantheon
Model: MA752.B
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Compatibility: 2G, 3G, 4G, 5G, GALILEO, GLONASS, GPS, LTE, Wi-Fi
Frequency Range: 1427 - 1518 MHz, 1575.42 MHz, 1602 MHz, 1710 - 2200 MHz, 2400 - 2500 MHz, 2490 - 2690 MHz, 3300 - 5000 MHz, 430 - 470 MHz, 5.15 - 5.85 GHz, 5150 - 5925 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 2 x antenna - SMA (male), 2 x Wi-Fi antenna - RP-SMA (male), GPS antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Features: IP67, Linear polarization, MIMO technology, Right-hand circular polarization (RHCP), SAW filter, Waterproof
Max Power: 3 watt
Physical Characteristics
Materials: PC/ABS
Dimensions and Weight
Height: 3.2 inch
Width: 5.7 inch
Depth: 5.6 inch
Weight: 2.56 lbs
Included Items
Cables: Antenna cable - 10 ft
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
