Product Information

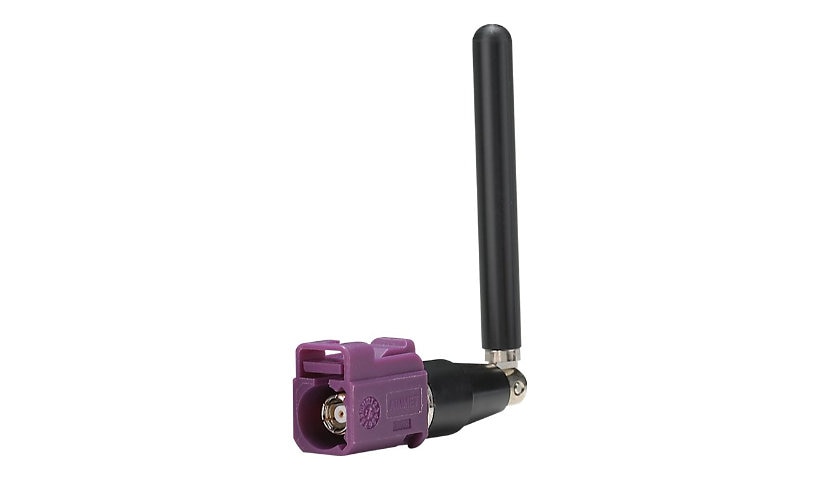

The Taoglas TG.08 is a compact, high efficiency hinged monopole antenna covering 2G, 3G, 4G and LTE cellular bands plus GPS, GLONASS, Galileo and BeiDou. It gives 2 dBi omni coverage, terminal mounts and uses a FAKRA connector in this version, suited to routers and vehicle tracking devices.
Key Features
- Cellular + GNSS
- 2G / 3G / 4G / LTE
- GPS, GLONASS, Galileo, BeiDou
- 2 dBi omni, hinged
- FAKRA connector
- About 3.1 in tall
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas
Model: TG.08
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi
Antenna Placement: Terminal mount
Antenna Compatibility: 2G, 3G, 4G, BeiDou, DCS, GALILEO, GLONASS, GPS, HSPA, LTE, PCS, UMTS
Frequency Range: 1561 MHz, 1575.42 MHz, 1602 MHz, 1850 - 1990 MHz, 1920 - 2170 MHz, 2490 - 2690 MHz, 703 - 803 MHz, 824 - 960 MHz
Signaling Type: Cellular, Navigation
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - FAKRA
Technical Information
Impedance: 50 ohm
Antenna Form Type: Monopole
Antenna Features: Hinged, Linear polarization, RoHS, VSWR < 2:1
Dimensions and Weight
Height: 3.1 inch
Width: 0.5 inch
Depth: 0.4 inch
Weight: 0.3 ounce
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
