Product Information

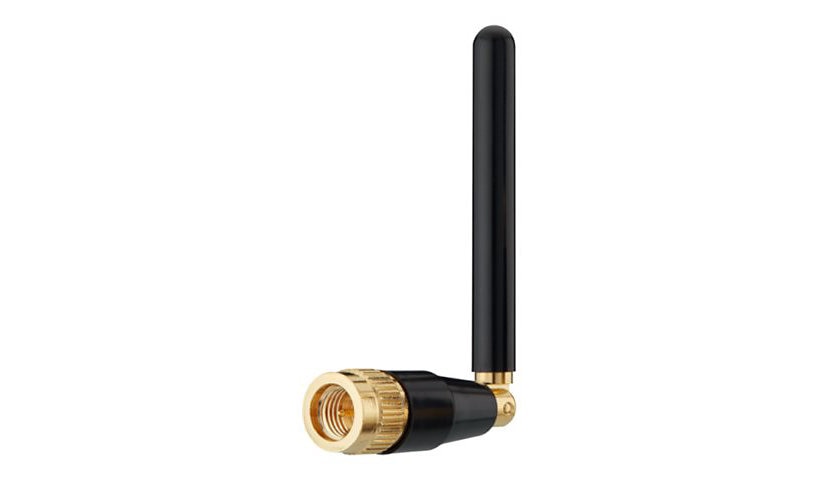

The Taoglas TG.59 is a compact 2.8 in (7.2 cm) hinged and rotatable monopole antenna for 3G, 4G and 5G covering bands from 1400 to 5925 MHz with 3.97 dBi gain. It terminal mounts with an SMA male connector.
Key Features
- 3G / 4G / 5G
- 1400 to 5925 MHz
- 3.97 dBi omni
- Hinged, rotatable
- SMA male
- About 2.8 in long
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas
Model: TG.59
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Gain: 3.97 dBi
Antenna Placement: Terminal mount
Antenna Compatibility: 3G, 4G, 5G
Frequency Range: 1400 - 1520 MHz, 1710 - 2200 MHz, 2300 - 2690 MHz, 3200 - 5000 MHz, 3300 - 3800 MHz, 5150 - 5925 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Monopole
Antenna Features: Hinged, Linear polarization, RoHS, Rotatable
Max Power: 2 watt
Physical Characteristics
Materials: Acrylonitrile butadiene styrene (ABS)
Dimensions and Weight
Antenna Length: 2.8 inch
Width: 0.4 inch
Depth: 0.4 inch
Length: 2.8 inch
Weight: 0.28 ounce
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
