Product Information

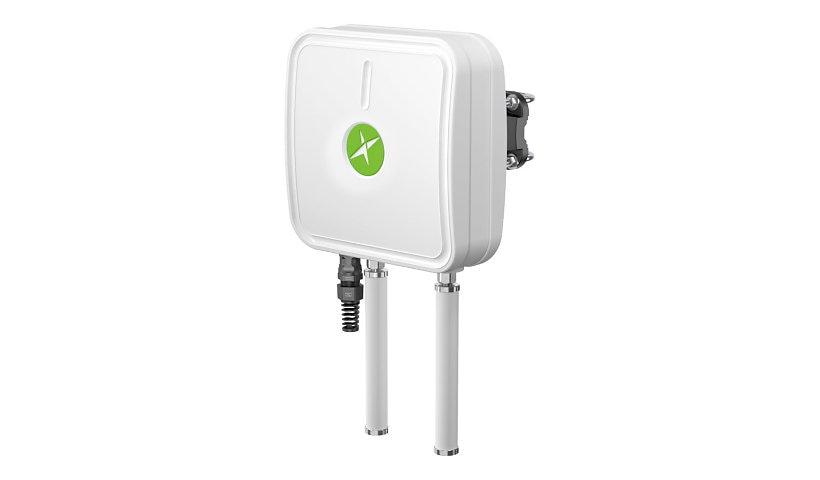

The Taoglas Thunder THOR98PA is an IP67 integrated outdoor antenna for 5G and LTE, Wi-Fi up to 7125 MHz and multi constellation GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS). It has a fiberglass, aluminum and ASA body and mounts on a wall or pole.
Key Features
- 5G / LTE + Wi-Fi + GNSS
- 600 to 7125 MHz
- Multi constellation GNSS
- IP67 outdoor
- Wall or pole mount
- Integrated design
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Thunder Series
Model: THOR98PA
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Placement: Pole mount, Wall-mountable
Antenna Compatibility: 5G, BeiDou, GALILEO, GLONASS, GPS, LTE, QZSS, SBAS, Wi-Fi
Frequency Range: 1.7 - 2.7 GHz, 2.4 - 2.5 GHz, 3.3 - 4.7 GHz, 5.2 - 6.0 GHz, 600 - 7125 MHz, 617 - 960 MHz
Signaling Type: Cellular, Navigation, Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: Antenna - RJ-45
Technical Information
Impedance: 50 ohm
Antenna Form Type: Integrated
Antenna Features: IP67, Right-hand circular polarization (RHCP), RoHS, Vertical polarization, VSWR < 2.0
Physical Characteristics
Materials: Aluminum, ASA plastic, Fiberglass, PTFE
Dimensions and Weight
Height: 3.9 inch
Width: 10.7 inch
Depth: 10.9 inch
Weight: 3.97 lbs
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
