Product Information

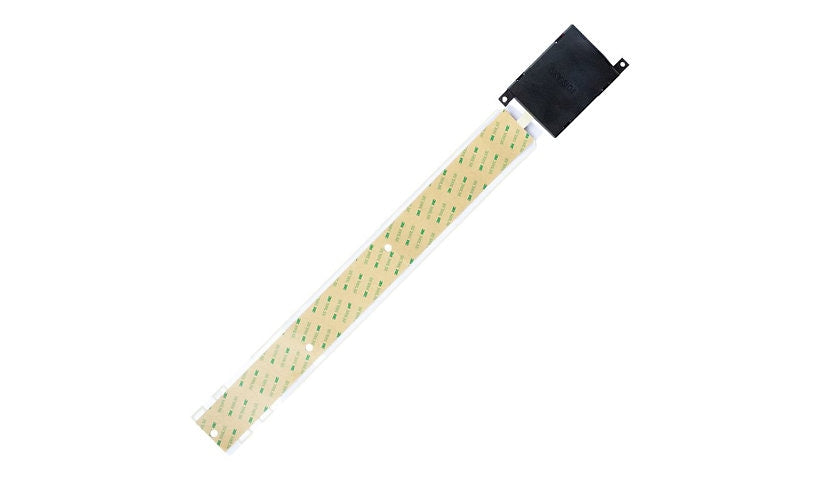

The Taoglas Watson MA2332 is a low profile adhesive film antenna for two way radio and similar VHF and UHF equipment, covering 153 to 174, 450 to 512 and 700 to 800 MHz with 2 dBi gain. It has an SMA male connector and a transparent PC/ABS body.
Key Features
- VHF / UHF radio antenna
- 153-174, 450-512, 700-800 MHz
- 2 dBi gain
- SMA male
- Adhesive film, low profile
- IP41
Product Information
Brand: Taoglas
Manufacturer: Taoglas USA Inc
Product Line: Taoglas Watson Series
Model: MA2332
Packaged Quantity: 1
Color Category: Transparent
Network and Communication
Antenna Gain: 2 dBi
Antenna Placement: Adhesive mount
Antenna Compatibility: UHF, VHF
Frequency Range: 153 - 174 MHz, 450 - 512 MHz, 700 - 800 MHz
Signaling Type: Radio
Antenna Type: Antenna
Connectivity
Connectors: Antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Film
Antenna Features: IP41, Linear polarization, REACH, RoHS, VSWR 2:1
Physical Characteristics
Materials: PC/ABS
Dimensions and Weight
Height: 0.7 inch
Width: 2.8 inch
Depth: 22.1 inch
Weight: 4.59 ounce
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
