Product Information

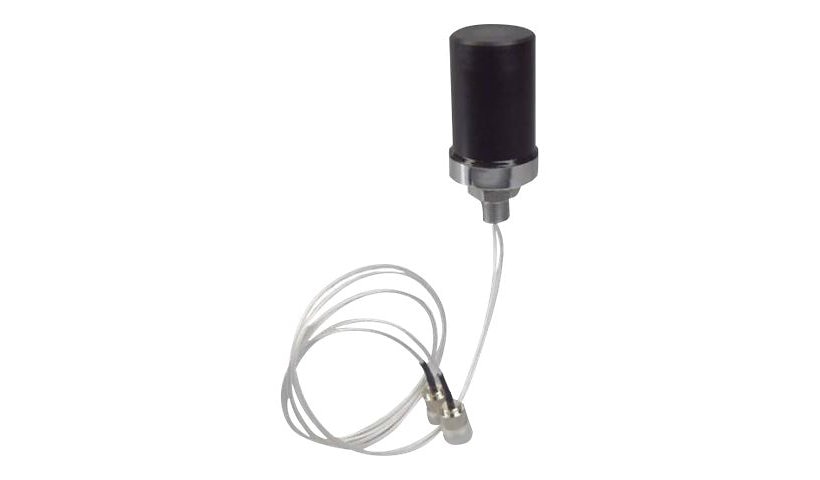

The TerraWave M3020040O2D1818SM is a black outdoor omni surface mount LTE antenna for IoT and mobile networks, with two leads for the main and diversity ports on most cellular modems. It gives 2 dBi at 698 to 960 MHz and 4 dBi at 1.7 to 2.7 GHz, a 360 x 65 degree pattern, vertical polarization and VSWR of 2.5:1. It stands up to moisture, wind, sun and dust, and has two 36 inch cables with SMA male connectors.
Key Features
- 2 lead LTE antenna
- 698 to 960, 1.7 to 2.7 GHz
- 2 and 4 dBi gain
- Outdoor surface mount
- Weather and dust resistant
- 2 x 36 in cables, SMA
Product Information
Brand: TerraWave
Manufacturer: Ventev
Product Line: TerraWave
Model: M3020040O2D1818SM
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi (for 698 - 960 MHz), 4 dBi (for 1.7 - 2.7 GHz)
Antenna Placement: Outdoor, Surface mountable
Antenna Compatibility: LTE
Frequency Range: 1.7 - 2.7 GHz, 698 - 960 MHz
Signaling Type: Cellular
Directivity: Omni-directional
Features: Dustproof, Moisture-resistant, Vertical polarisation, Weather-resistant
Connectivity
Antenna Cable Length: 36 inch
Connector Provided: 2 x SMA male
Technical Information
Horizontal Beamwidth: 360°
Vertical Beamwidth: 65°
Voltage Standing Wave Ratio (VSWR): 2.5:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 3.5 inch
Width: 1.8 inch
Depth: 1.8 inch
Weight: 23.98 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
