Product Information

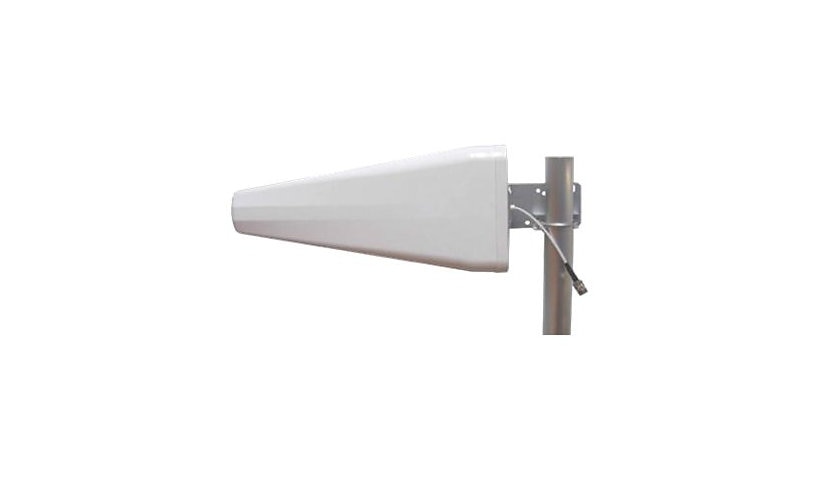

The TerraWave M3100110D11206 is an outdoor directional antenna for voice and data on LTE, GSM, CDMA, PCS, 3G and WLAN bands, with 10 dBi at 698 to 960 MHz and 11 dBi at 1.71 to 2.7 GHz. It has a 65 x 50 degree beam, VSWR of 1.5:1, a 12 inch lead with an N female connector and an included mounting kit.
Key Features
- Directional LTE antenna
- 698 to 960, 1710 to 2700 MHz
- 10 and 11 dBi gain
- 65 x 50 degree beam
- N female, 12 in lead
- Mounting kit included
Product Information
Brand: TerraWave
Manufacturer: Terrawave
Product Line: TerraWave
Model: M3100110D11206
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Network and Communication
Antenna Gain: 10 dBi (for 698 - 960 MHz), 11 dBi (for 1.71 - 2.7 GHz)
Antenna Placement: Outdoor
Frequency Range: 1710 - 2700 MHz, 698 - 960 MHz
Directivity: Directional
Connectivity
Antenna Cable Length: 12 inch
Connector Provided: 1 x N-Series connector female
Technical Information
Horizontal Beamwidth: 65°
Vertical Beamwidth: 50°
Voltage Standing Wave Ratio (VSWR): 1.5:1
Physical Characteristics
Mounting Kit: Included
Dimensions and Weight
Height: 1.5 inch
Width: 8.1 inch
Depth: 17.4 inch
Weight: 35.2 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
