Product Information

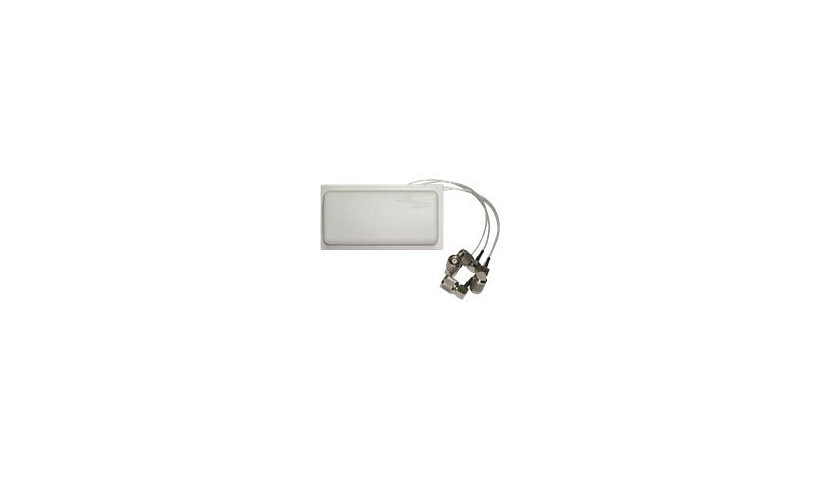

The TerraWave M6040060O2D1802R is a white indoor ceiling omni antenna that puts four dual band antennas in one unit for dual band access points, with 4 dBi at 2.4 to 2.5 GHz and 6 dBi at 5.1 to 5.8 GHz. It covers 360 degrees with a 55 to 60 degree vertical beam and VSWR of 1.5:1, has RP-TNC male connectors and comes with a mounting kit. The spec lists five connectors while the description says four antennas, so please confirm.
Key Features
- Quad dual band omni
- 4 and 6 dBi gain
- Ceiling mount, indoor
- RP-TNC male
- Mounting kit included
- White
Product Information
Brand: TerraWave
Manufacturer: Terrawave
Product Line: TerraWave
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2400 MHz - 2500 MHz), 6 dBi (for 5100 MHz - 5850 MHz)
Antenna Placement: Ceiling mountable, Indoor
Frequency Range: 2.4 - 2.5 GHz, 5.1 - 5.8 GHz
Directivity: Omni-directional
Connectivity
Connector Provided: 5 x RP-TNC male
Technical Information
Horizontal Beamwidth: 360°
Vertical Beamwidth: 55°, 60°
Voltage Standing Wave Ratio (VSWR): 1.5:1
Physical Characteristics
Mounting Kit: Included
Dimensions and Weight
Height: 1.2 inch
Width: 5.4 inch
Depth: 2.9 inch
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
