Product Information

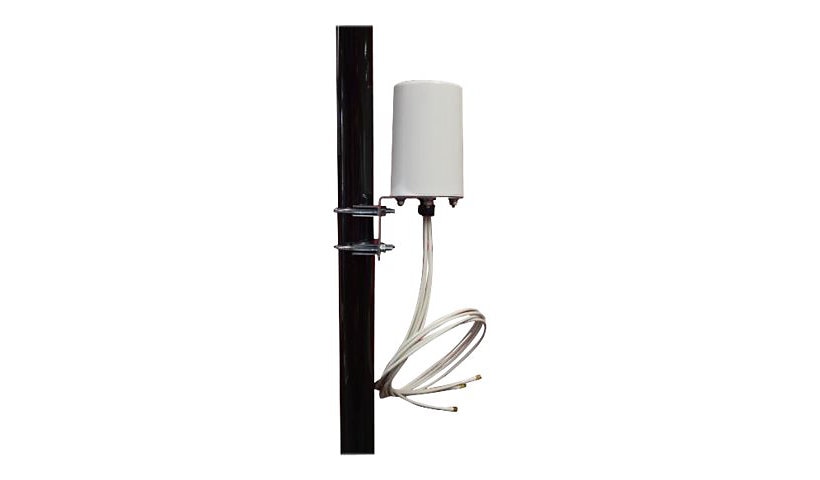

The TerraWave (Ventev) M6060060M1D43602C is a small form 4x4 MIMO omni antenna for 2.4 and 5 GHz access points, with 5 dBi and 6 dBi gain. It has four RP-TNC connectors on 3 ft cables, is IP54 rated for indoor or outdoor use and includes an L-type bracket for wall, mast or pole mounting.
Key Features
- Dual band 2.4 / 5 GHz
- 5 / 6 dBi omni, 4x4 MIMO
- 4 x RP-TNC, 3 ft cables
- IP54 indoor / outdoor
- L-type bracket included
- Wall, mast or pole mount
Product Information
Brand: TerraWave
Manufacturer: Terrawave
Product Line: TerraWave
Model: M6060060M1D43602C
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Gain: 5 dBi (for 2.4 - 2.5 GHz), 6 dBi (for 4.9 - 5.85 GHz)
Antenna Placement: Indoor, Mast, Outdoor, Pole mount, Wall-mountable
Antenna Compatibility: 802.11ac, Wi-Fi, WLAN 2.4 GHz, WLAN 5.8 GHz
Frequency Range: 2.4 GHz, 5 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 4 x antenna - RP-TNC
Technical Information
Impedance: 50 ohm
Antenna Features: IP54, MIMO technology, Vertical polarization, VSWR 2.0
Max Power: 10 watt
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 6 inch
Width: 4 inch
Depth: 4 inch
Weight: 3 lbs
Included Items
Accessories Included: L-type mounting bracket
Cables: 4 x antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
