Product Information

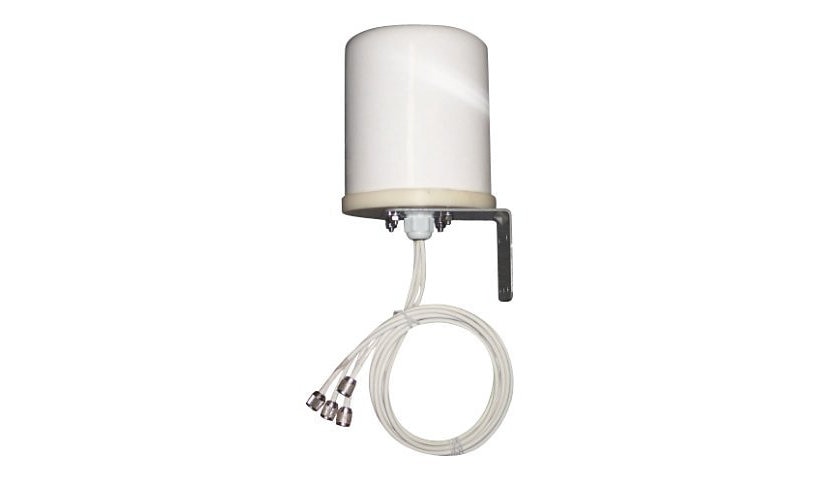

The TerraWave M6060060MO1D3602O is an outdoor 6 dBi MIMO omni antenna for enterprise 802.11 access points from many makers, covering 2.4 to 2.5 GHz and 5.15 to 5.85 GHz. It has six RP-TNC connectors, VSWR of 1.5:1 at 2.4 GHz and 2.0:1 at 5 GHz, and mounts on a wall or pole.
Key Features
- Dual band MIMO omni
- 2.4 and 5 GHz, 6 dBi
- 6 RP-TNC connectors
- Outdoor use
- Wall or pole mount
- Fits many enterprise APs
Product Information
Stylus Type: Antenna
Brand: TerraWave
Manufacturer: Terrawave
Product Line: TerraWave
Model: MIMO Omnidirectional Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Network and Communication
Antenna Gain: 6 dBi
Antenna Placement: Outdoor, Pole mount, Wall-mountable
Frequency Range: 2.4 - 2.5 GHz, 5.15 - 5.85 GHz
Directivity: Omni-directional
Connectivity
Connector Provided: 6 x RP-TNC
Technical Information
Voltage Standing Wave Ratio (VSWR): 1.5:1 (for 2400 MHz - 2500 MHz), 2.0:1 (for 5100 MHz - 5850 MHz)
Dimensions and Weight
Height: 8 inch
Width: 6 inch
Depth: 8 inch
Weight: 3.75 lbs
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
