Product Information

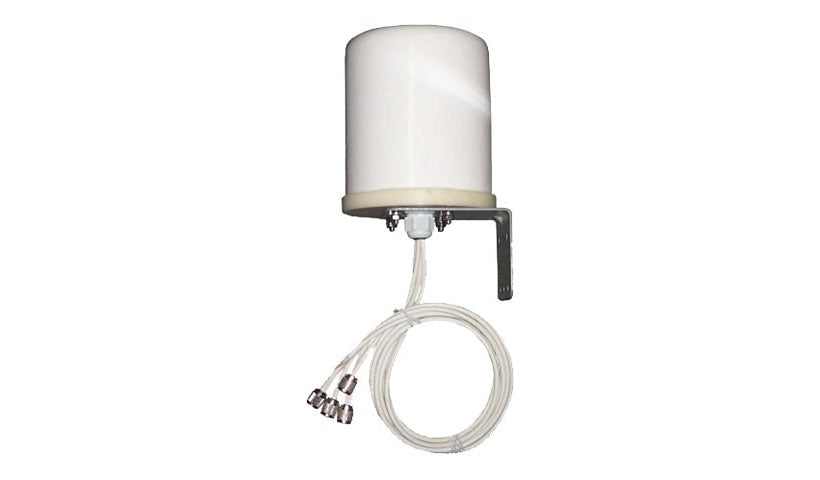

The TerraWave M6060060MO1D43607 is a rugged outdoor omni antenna for 2.4 and 5 GHz Wi-Fi with 6 dBi gain and four dual band leads, suited to warehouses and plants where moisture and dust are a concern. It gives 360 degree horizontal coverage with a 40 degree vertical beam, narrowing to 20 degrees at 5.1 to 5.85 GHz, and VSWR of 2.0:1 at 2.4 GHz and 2.2:1 at 5 GHz. N connectors are used, and an L bracket for mast mounting plus a beam clamp are included.
Key Features
- Quad lead omni antenna
- 2.4 and 5 GHz, 6 dBi
- 4 dual band leads
- N connectors
- Outdoor, rugged enclosure
- L bracket and beam clamp
Product Information
Brand: TerraWave
Manufacturer: Terrawave
Product Line: TerraWave
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Network and Communication
Antenna Gain: 6 dBi
Antenna Placement: Outdoor, Pole mount, Wall-mountable
Frequency Range: 2.4 GHz, 5 GHz
Signaling Type: Wi-Fi
Directivity: Omni-directional
Connectivity
Connector Provided: 1 x N connector
Technical Information
Horizontal Beamwidth: 360°
Vertical Beamwidth: 20° (at 5.1 - 5.85 GHz), 40°
Voltage Standing Wave Ratio (VSWR): 2.0:1 (for 2400 MHz - 2500 MHz), 2.2:1 (for 5150 MHz - 5850 MHz)
Dimensions and Weight
Weight: 3.75 lbs
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
