Product Information

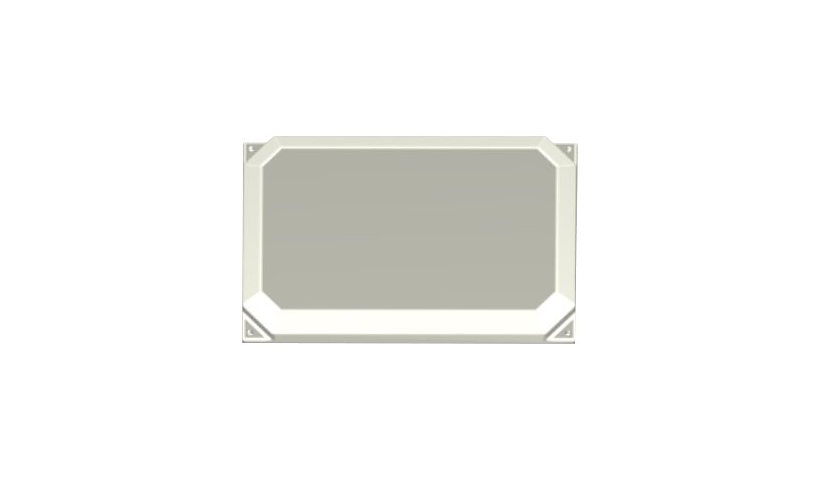

The TerraWave (Ventev) M6080080P1D43602 is an 8 dBi directional antenna for 2.4 and 5 GHz APs with four RP-TNC ports, including 802.11ac Wave 1 and 2 and Wi-Fi 6 models. Its narrow vertical and wide horizontal beam suits aisles and warehouses. It has four RP-TNC male connectors on 3 ft cables and includes an articulating mount.
Key Features
- Dual band 2.4 / 5 GHz
- 8 dBi directional
- Narrow vertical, wide horizontal
- 4 x RP-TNC male, 3 ft cables
- Articulating mount included
- Wall, mast or pole
Product Information
Brand: TerraWave
Manufacturer: Ventev
Product Line: TerraWave
Model: M6080080P1D43602
Compatibility Specs: TerraWave High Strength Universal Articulating Mount, Industrial Articulating Mount, Universal Articulating Mount
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 8 dBi
Antenna Placement: Mast, Pole mount, Wall-mountable
Antenna Compatibility: Wi-Fi
Frequency Range: 2.4 GHz, 5 GHz
Signaling Type: Wi-Fi
Antenna Type: Antenna
Directivity: Directional
Connectivity
Connectors: 4 x antenna - RP-TNC (male)
Technical Information
Impedance: 50 ohm
Antenna Features: Horizontal polarization, Vertical polarization, VSWR = 2.0
Max Power: 50 watt
Physical Characteristics
Mounting Kit: Included
Dimensions and Weight
Height: 6.7 inch
Width: 10.6 inch
Depth: 1.6 inch
Weight: 3.53 lbs
Included Items
Accessories Included: articulating mount
Cables: Antenna cable - 3 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
