Product Information

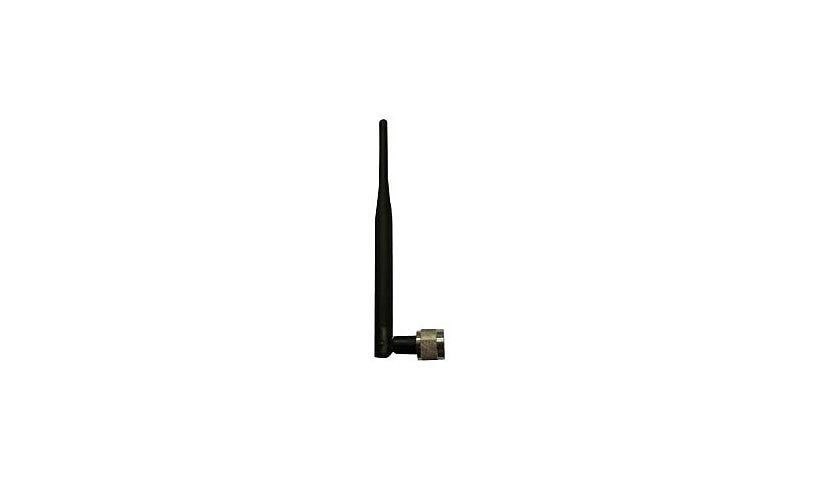

The TerraWave M7020030R10007B is a compact indoor dual band omni antenna with 2 dBi at 2.4 GHz and 3 dBi at 5 GHz, made to work with most access points. It has an N-type connector and a black polyurethane body.
Key Features
- Dual band 2.4 / 5 GHz
- 2 / 3 dBi omni
- N-type connector
- Compact, indoor
- Black polyurethane
- 14 to 131 °F
Product Information
Brand: TerraWave
Manufacturer: Terrawave
Product Line: TerraWave
Model: M7020030R10007B
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 2 dBi (for 2400 MHz - 2500 MHz), 3 dBi (for 4900 MHz - 5875 MHz)
Antenna Placement: Indoor
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.875 GHz
Directivity: Omni-directional
Connectivity
Connector Provided: 1 x N-Series connector
Technical Information
Impedance: 50 ohm
Horizontal Beamwidth: 360°
Vertical Beamwidth: 50°, 70°
Voltage Standing Wave Ratio (VSWR): 2.0:1
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Materials: Polyurethane
Dimensions and Weight
Weight: 0.95 ounce
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
