Product Information

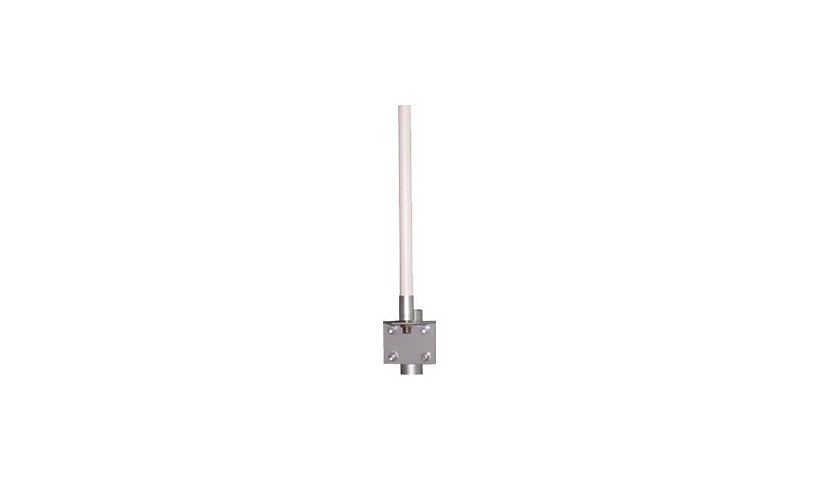

The TerraWave M7040070O10007 is a dual band fiberglass omni antenna covering 2400 to 2500 MHz at 4 dBi and 5150 to 5875 MHz at 7 dBi. It has a direct N male connector, is about 1 ft long, and suits indoor or outdoor pole mounting.
Key Features
- Dual band 2.4 / 5 GHz
- 4 / 7 dBi omni
- Direct N male connector
- Fiberglass radome
- About 1 ft long
- Indoor / outdoor
Product Information
Brand: TerraWave
Manufacturer: Terrawave
Product Line: TerraWave
Model: Dual Band Fiberglass Antenna
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2400 MHz - 2500 MHz), 7 dBi (for 5.15 - 5.875 GHz)
Antenna Placement: Indoor, Outdoor, Pole mount
Frequency Range: 2.4 - 2.5 GHz, 5.15 - 5.875 GHz
Directivity: Omni-directional
Connectivity
Connector Provided: 1 x N connector male
Technical Information
Impedance: 50 ohm
Voltage Standing Wave Ratio (VSWR): 2.0:1
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Materials: Fiberglass
Dimensions and Weight
Width: 1.2 inch
Depth: 1.2 inch
Length: 1 ft
Weight: 5.29 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
