Product Information

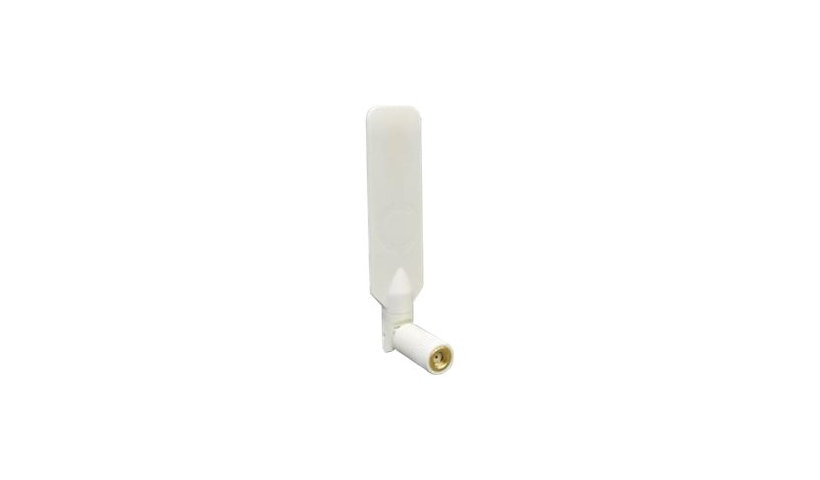

The TerraWave TWS244950 is a compact indoor dual band rubber duck antenna for access points, with 3.5 dBi at 2.4 GHz and 6 dBi at 5 GHz and a 360° pattern. It has an RP-SMA male connector and a white body.
Key Features
- Dual band 2.4 / 5 GHz
- 3.5 / 6 dBi omni
- RP-SMA male
- Indoor use
- Compact, white
- 14 to 122 °F
Product Information
Brand: TerraWave
Manufacturer: Terrawave
Product Line: TerraWave
Model: Dual Band Rubber Duck
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Antenna Gain: 3.5 dBi (for 2.4 - 2.5 GHz), 6 dBi (for 4.9 - 5.875 GHz)
Antenna Placement: Indoor
Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.875 GHz
Directivity: Omni-directional
Connectivity
Connector Provided: 1 x RP-SMA male
Technical Information
Impedance: 50 ohm
Horizontal Beamwidth: 360°
Vertical Beamwidth: 50° (at 4.9 - 5.875 GHz), 70° (at 2.4 - 2.5 GHz)
Voltage Standing Wave Ratio (VSWR): 2.0:1
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Materials: ABS plastic, Nylon
Dimensions and Weight
Width: 0.9 inch
Depth: 5 inch
Weight: 0.8 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
