Product Information

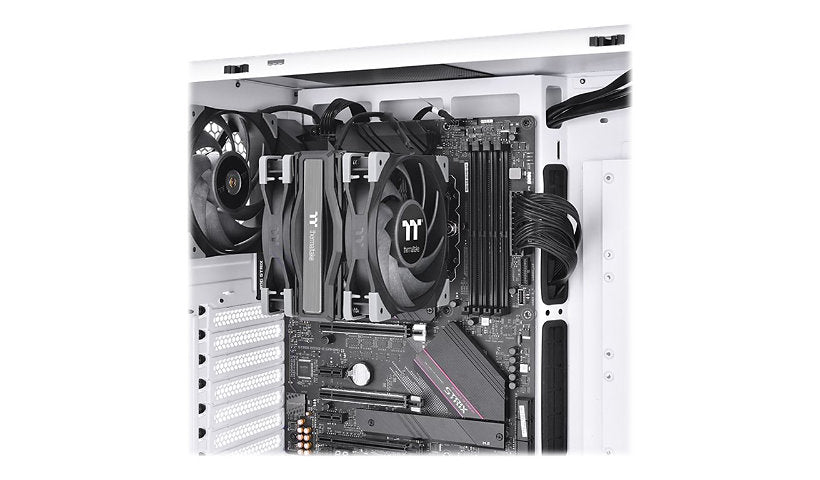

The Thermaltake TOUGHAIR 510 is a single tower CPU cooler with two 120 mm high static pressure fans and four 6 mm copper heat pipes. Fans run from 500 to 2000 rpm at 23.6 dBA, and it supports Intel LGA1200/115x and AMD AM4 and older sockets.
Key Features
- 2 x 120 mm fans, 500 to 2000 rpm
- 4 x 6 mm copper heat pipes
- 23.6 dBA noise level
- Intel LGA1200/1150/1151/1155/1156
- AMD AM4, AM3+, AM3, AM2+, AM2, FM2, FM1
- Aluminum heatsink, mounting kit included
Product Information
Brand: Thermaltake
Manufacturer: Thermaltake Technology
Product Line: Thermaltake TOUGHAIR
Model: 510
Product Type: Processor cooler
Category of Accessory: Cooling and fans
Packaged Quantity: 1
Color Category: Black, Silver
Power
Power Connectors: 4-pin fan connector
Rated Voltage: 12 volt
Memory and Processor
Compatible Processor Socket: LGA1150 Socket, LGA1151 Socket, LGA1155 Socket, LGA1156 Socket, LGA1200 Socket, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2
Technical Information
Fan Speed (rpm): 500-2000 rpm
Noise Levels: 23.6 dBA
Rated Current: 0.48 A
Start Voltage: 6 volt
Fan Quantity: 2
Heat Pipes: 4 copper heatpipes (6 mm)
Heatsink Material: Aluminum
MTBF: 40,000 hour(s)
Physical Characteristics
Fan Diameter: 120 mm
Mounting Kit: Included
Dimensions and Weight
Fan Height: 0.98 in
Height: 6.3 inch
Width: 4.9 inch
Depth: 3.9 inch
Not sure this cooling part fits your system? Send us your server, workstation or PC model and the part you are replacing, and the DatorPro team will confirm fit before you order.
