Product Information

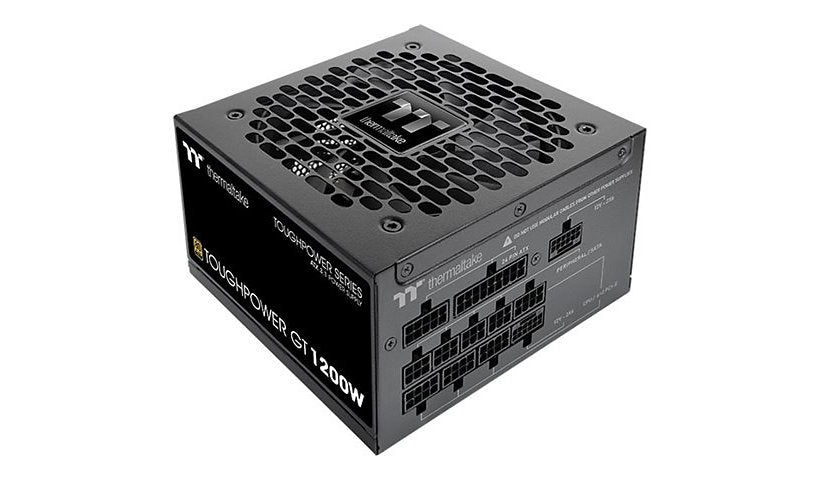

The Thermaltake ToughPower GT 1200W is a fully modular ATX 3.1 power supply with 80 PLUS Gold efficiency at 90%. It provides two 12VHPWR connectors for modern GPUs and uses LLC resonant and DC-DC design with a full set of protections and a Zero RPM fan mode. It carries a 5 year limited warranty.
Key Features
- 1200 W output, 80 PLUS Gold, 90% efficiency
- 2 x 12VHPWR plus 8-pin PCIe connectors
- ATX12V 3.1 and EPS12V, active PFC
- OCP, OVP, OPP, OTP, SCP and UVC protection
- 120 mm hydraulic bearing fan, Zero RPM mode
- 5 year limited warranty listed
Product Information
Brand: Thermaltake
Manufacturer: Thermaltake Technology
Product Line: Thermaltake ToughPower GT
Model: 1200W
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color: Black
Color Category: Black
Power
PSU Form Factor: ATX
Modular: Yes
Power Factor Correction: Active Power Factor Correction (PFC)
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Device Features: DC-DC technology, Fully modular, Hydraulic bearing cooling fan, LLC resonant converter technology, Overcurrent protection, Overheat protection, Overpower protection, Overvoltage protection, Short-circuit protection, Undervoltage correction, Zero RPM fan mode
Power Output Connectors Details: 1 x power 24 pin ATX, 2 x 12VHPWR, 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section, 4 x 4 pin internal power, 5 x 2 x 8 pin PCI Express power with detachable 2 pin section, 6 x 15 pin Serial ATA power
Power Provided: 1200 watt
Form Factor (Power Device): Internal
Power Supply Compatibility: PC/Server
Efficiency: 90%
Provided Voltage: +3.3, +5, ±12 V, +5Vsb volt
Output Current: -12V - 0.3 A, +12V - 100 A, +3.3V - 20 A, +5V - 20 A, +5VSB - 3 A
80 PLUS Certification: 80 PLUS Gold
Technical Information
Cooling System: 120 mm fan
Specification Compliance: ATX12V 3.1/ EPS12V
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 85% (non-condensing)
MTBF: 100,000 Hours
Dimensions and Weight
Height: 3.4 inch
Width: 5.9 inch
Depth: 5.5 inch
Included Items
Cables: 2 x 15 pin Serial ATA power modular cable 2.5 ft, 2 x 16-pin 12VHPWR power modular cable 2 ft, 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 2.5 ft, 2 x power 8 pin +12V with detachable 4 pin section modular cable 2.3 ft, 4 pin power modular cable 2.8 ft, 8 pin PCI Express power with detachable 2 pin section modular cable 2 ft, AC power cable, Power 24 pin ATX with detachable 4 pin section modular cable 1.8 ft
Certifications and Listing
Compliant Standards: BIS, BSMI, CB, CCC, cTUVus, FCC, ICES, LVD, RCM, S Mark, TUV, UKCA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
