Product Information

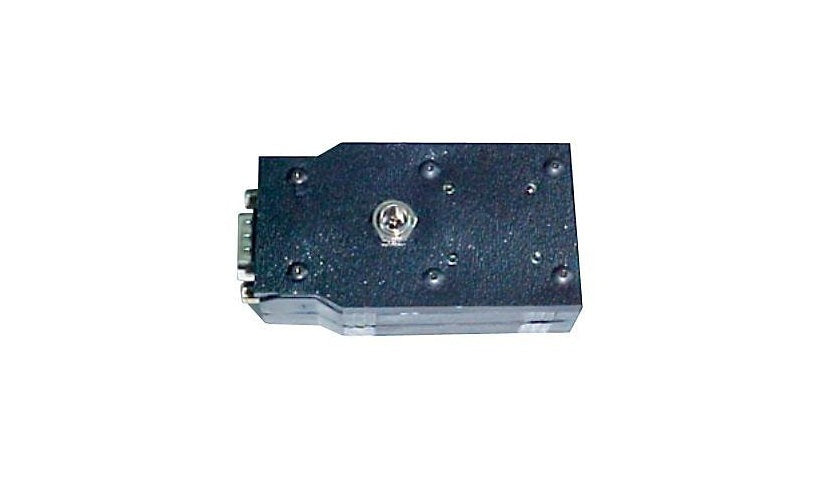

The Topaz A-ETH1-1 is a serial to Ethernet converter, not a PC network card, that connects a Topaz RS-232 (DB-9) device to a 10/100 network. Once its drivers are set up on the server, it creates a virtual COM port there, so SigPlus signature pad software can use the pad over the network without going through the client PC.
Key Features
- Serial to Ethernet converter
- RS-232 DB-9 input
- 10/100 RJ-45 port
- Virtual COM port on server
- For Topaz signature pads
- Works with SigPlus
Product Information
Brand: Topaz
Manufacturer: Topaz Systems
Product Line: Topaz
Model: A-ETH1-1
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Cable Type: Ethernet 100Base-TX, Ethernet 10Base-T
Connectivity
Interface Required Connections: 1 x serial - RS-232 - 9 pin D-Sub (DB-9)
Interface Provided: 1 x 100Base-TX - RJ-45
Network & Adapter Ports: 10/100
Host Interface: Serial RS-232
Physical Characteristics
Form Factor: External
