Product Information

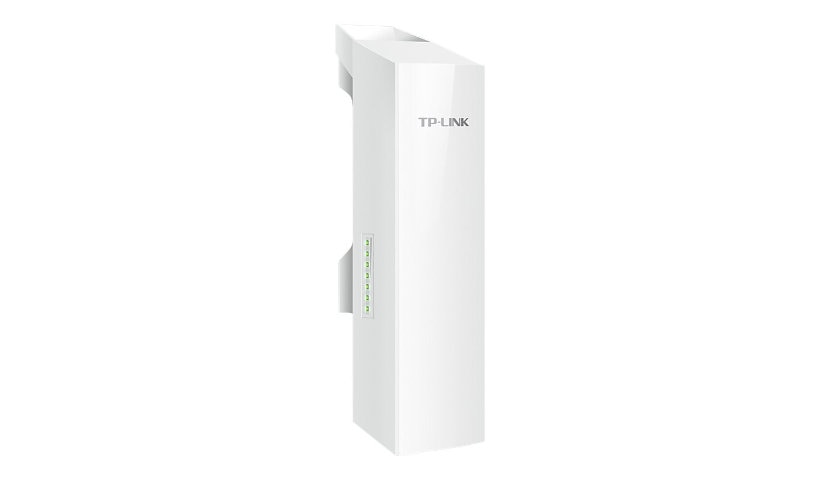

The TP-Link CPE510 is a 5 GHz 300 Mbps outdoor CPE with a built in 13 dBi 2x2 dual polarized directional antenna, for point to point and point to multipoint links of over 15 km and outdoor Wi-Fi coverage. It has a 10/100 PoE port, adjustable transmit power up to 27 dBm and Pharos central management. This is a radio, not a standalone antenna.
Key Features
- 5 GHz 802.11n, 300 Mbps
- 13 dBi 2x2 dual pol antenna
- Over 15 km PtP links
- 10/100 PoE port
- Pharos management
- Pole mount
Product Information
Brand: TP-Link
Manufacturer: TP-LINK Technologies Co., Ltd
Model: CPE510
Product Type: Wireless Bridge
Indoor & Outdoor: Outdoor
Country of Origin: China
Network and Communication
Outdoor Antenna Range: 9.3 miles
Data Link Protocols: Ethernet, Fast Ethernet
Wireless LAN: IEEE 802.11n
Wireless Transmission Speed: 300 Mbps
Antenna Type: Dual Polarized Antenna
Data Encryption: Yes
Encryption Standard: 128-bit WEP, 152-bit WEP, 64-bit WEP, AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Features: MIMO Technology, Weatherproof
Connectivity
Audio Line Out: No
Network (RJ-11): No
Serial Port: No
Network (RJ-45) Ports: 1
PoE (RJ-45) Port: Yes
HDMI: No
VGA: No
Powerline: No
Management Port: No
USB: No
PoE PD Port: Yes
Power
Input Voltage: 24 V DC
Power Consumption: 10.50 watt
Physical Characteristics
Form Factor: Pole-mountable
Dimensions and Weight
Height: 1.3 inch
Width: 4.3 inch
Depth: 2.2 inch
Certifications and Listing
Environmentally Friendly: Yes
