Product Information

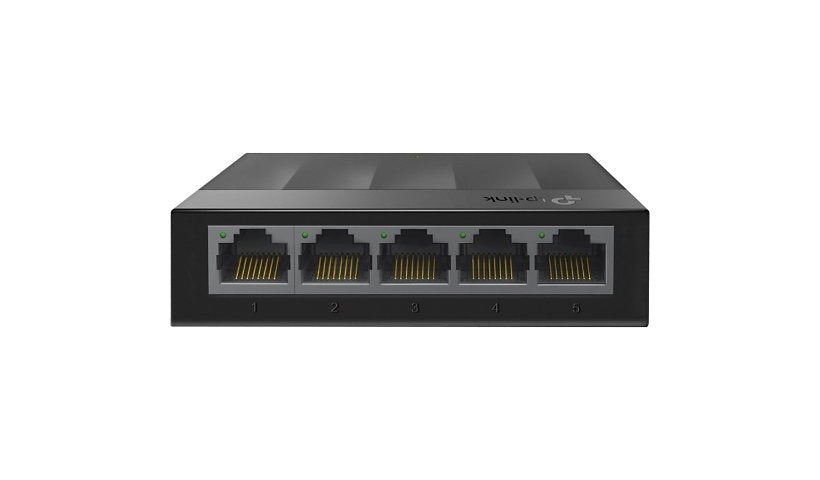

The TP-Link LS1005G is a small unmanaged switch from the LiteWave line that adds five Gigabit RJ-45 ports to a home or small office network. It is plug and play, so there is nothing to configure: connect it and the ports negotiate speed on their own. The unit can sit on a desk or mount on a wall and runs from an external power adapter, drawing about 3.7 watts.
Key Features
- 5 x 10/100/1000 Mbps RJ-45 ports
- Unmanaged Layer 2 switch, plug and play
- Auto negotiation and auto MDI/MDIX on every port
- IEEE 802.3x flow control
- Fanless, quiet operation
- Desktop or wall mount, about 3.5 x 2.8 x 0.9 in
- External power adapter, 3.7 W power consumption
Product Information
Brand: TP-Link
Manufacturer: TP-LINK Technologies Co., Ltd
Product Line: LiteWave
Model: LS1005G
Product Type: Ethernet Switch
Country of Origin: China
Network and Communication
Data Link Protocols: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Layer Supported: 2
Manageable: No
Connectivity
Expansion Slot Details: 5 x Gigabit Ethernet Network
Network (RJ-45): Yes
Power
Power Source: Power Adapter
Power Consumption: 3.70 watt
Physical Characteristics
Form Factor: Desktop, Wall Mountable
Dimensions and Weight
Height: 0.9 inch
Width: 3.5 inch
Depth: 2.8 inch
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
