Product Information

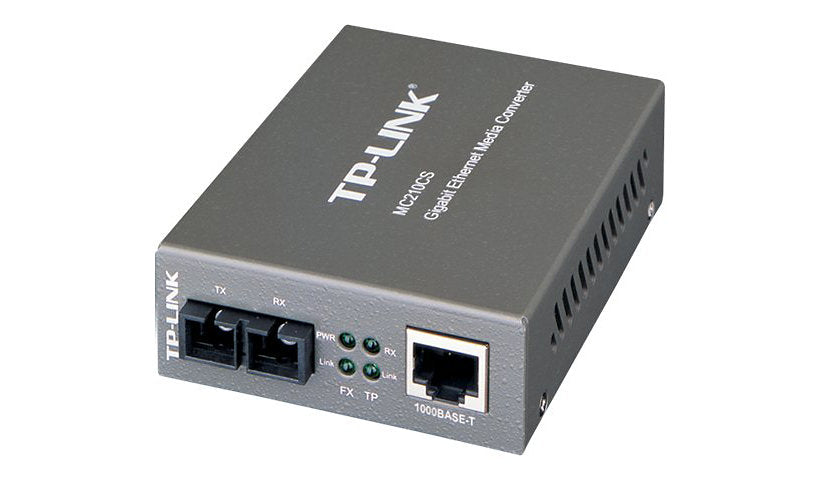

The TP-Link MC210CS converts between Gigabit single-mode fiber and Gigabit copper Ethernet, letting you link two sites or buildings over fiber and connect copper devices at each end. It uses an SC fiber port at 1310 nm and an RJ-45 port with auto MDI/MDIX. Front LEDs show link status, and it runs from an external power adapter at about 1.8 W.
Key Features
- 1 x 1000Base fiber port (SC, single-mode, 1310 nm)
- 1 x 1000Base-T RJ-45 port with auto MDI/MDIX
- Full duplex at 1000 Mbps on both ports
- LED status indicators
- External power adapter, 1.8 W
Product Information
Brand: TP-Link
Manufacturer: TP-LINK Technologies Co., Ltd
Model: MC210CS
Product Type: Transceiver/Media Converter
Country of Origin: China
Network and Communication
Data Link Protocols: Gigabit Ethernet
Network Technology: 1000Base-FX, 1000Base-T
Max Distance Supported: 15 kilometre
Fiber Mode Supported: Single-mode
Optical Wave Length: 1310 nanometer
Connectivity
Ports: 2
Network (RJ-45): Yes
Network (RJ-45) Ports: 1
Output Connector Quantity: 1
Power
Power Source: Power Adapter
Power Consumption: 1.80 watt
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.1 inch
Width: 3.7 inch
Depth: 2.9 inch
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
