Product Information

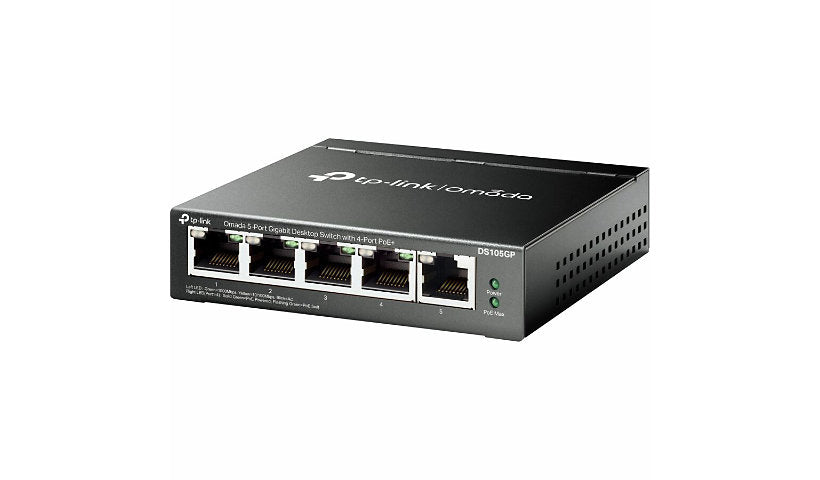

TP-Link's Omada DS105GP is a fanless unmanaged desktop switch with five Gigabit ports, four of them PoE+ at up to 30 W each. It has a 65 W PoE budget, can reach devices up to 250 m (820 ft) away and supports 802.1p and DSCP QoS.
Key Features
- 5 x Gigabit RJ-45 ports
- 4 x PoE+ ports, 30 W each
- 65 W PoE budget
- Up to 250 m PoE reach
- Unmanaged, fanless
- Desktop or wall mount
Product Information
Brand: Omada
Manufacturer: TP-LINK Technologies Co., Ltd
Model: DS105GP
Product Type: Ethernet Switch
Network and Communication
Data Link Protocols: Fast Ethernet, Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Manageable: No
Max Data Transfer Rate: 125 MB/s
Features: Fanless
Connectivity
Expansion Slot Details: 5 × 10/100/1000BASE-T RJ45 Network Ports
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
Power
Power Source: Power Adapter
Input Voltage: 53.5 V DC
Frequency: 50 hertz, 60 hertz
Power Consumption: 74.54 watt
PoE Budget: 65 watt
Physical Characteristics
Form Factor: Desktop, Wall Mountable
Dimensions and Weight
Height: 1 inch
Width: 3.9 inch
Depth: 3.9 inch
