Product Information

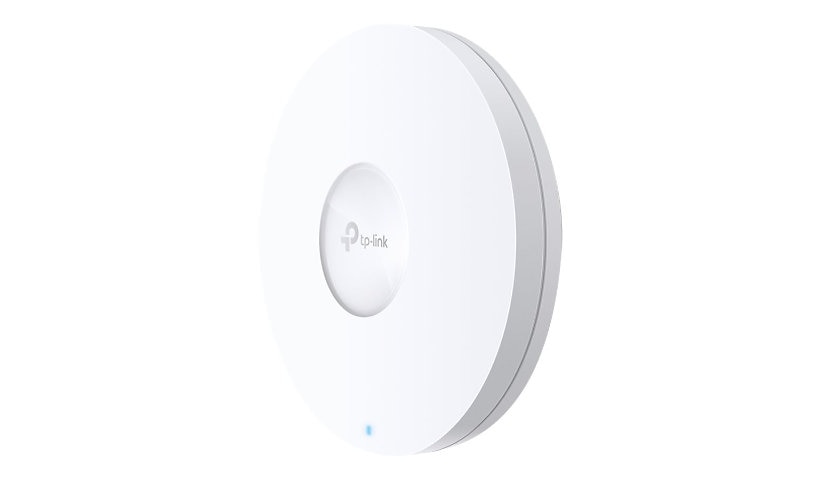

The TP-Link EAP660 HD is an Omada SDN AX3600 Wi-Fi 6 dual band ceiling or wall access point with a 2.5G PoE port. It supports up to 16 SSIDs, seamless roaming, band steering, captive portal and MU-MIMO, and a mounting kit is included. It is an access point, not a router.
Key Features
- Wi-Fi 6 AX3600, dual band
- 1 x 2.5GBase-T PoE port
- Up to 16 SSIDs, seamless roaming
- Band steering, captive portal, MU-MIMO
- Omada SDN managed
- Wall/ceiling mount kit included
Product Information
Brand: TP-Link
Manufacturer: TP-Link
Product Line: TP-Link
Model: EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management: HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3
Encryption: WEP, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Line Coding Format: 1024 QAM, OFDM, OFDMA
Capacity: Maximum number of configured SSIDs: 16
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Antenna Form Factor: Internal
Wi-Fi Rating: AX3600
Directivity: Omni-directional
Operating System Required: Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
Features: Access Control List (ACL) support, Airtime Fairness, Band steering, Beamforming technology, Captive Portal, E-mail alert, Load balance network mode, MAC address filtering, MU-MIMO technology, Quality of Service (QoS), Rate limit, Rogue access point detection, Schedule reboot, Seamless roaming, SSH support, Transmit Power Control (TPC), VLAN support, Wi-Fi Multimedia (WMM) support, Wireless Scheduler
Connectivity
Interface Provided: 1 x 2.5 GBase-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 2.5 inch
Width: 9.6 inch
Depth: 9.6 inch
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards #2: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
Compliant Standards: FCC, RoHS
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
Warranty
Service Activation: No
