Product Information

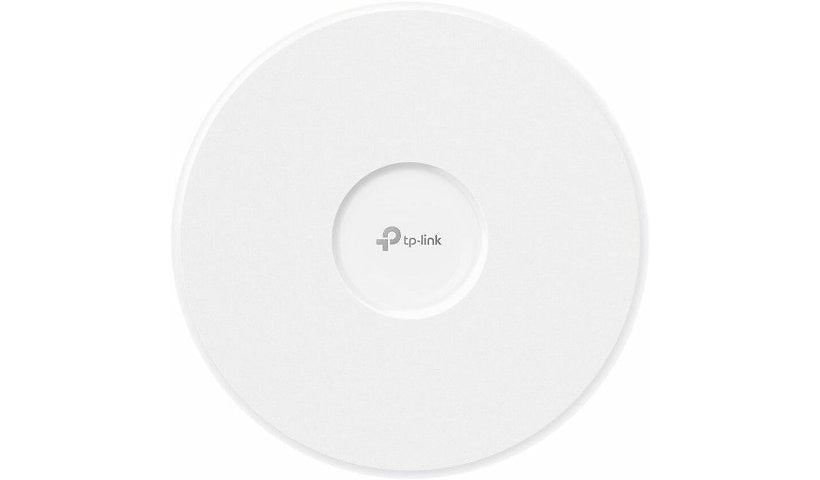

TP-Link's Omada EAP772 is a slim ceiling mount Wi-Fi 7 access point with tri-band radios and Multi-Link Operation. The spec lists 10.4 Gbps while the description says up to 11 Gbps, so the higher figure should be confirmed. It has a 2.5G PoE port, Bluetooth 5.2, mesh support and draws about 22.57 W.
Key Features
- Wi-Fi 7 tri-band, MLO
- 10.4 Gbps per spec sheet
- 2.5G RJ-45, PoE powered
- Bluetooth 5.2
- Omada mesh
- Ultra-thin design
Product Information
Brand: Omada
Manufacturer: TP-LINK Technologies Co., Ltd
Model: EAP772
Product Type: Wireless Access Point
Network and Communication
Data Link Protocols: 2.5 Gigabit Ethernet
Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax/be
Bluetooth Standard: Bluetooth 5.2
Beamforming Technology: Yes
MIMO Technology: Yes
Wireless Transmission Speed: 10.40 Gbit/s
Network Band: Tri Band
Data Encryption: Yes
Encryption Standard: WPA-ENT, WPA-PSK, WPA2-ENT, WPA2-PSK, WPA3, WPA3-ENT, WPA3-Personal
Communication Protocols: RADIUS, SNMPv1/v2c/v3
Connectivity
Network (RJ-45) Ports: 1
PoE PD Port: Yes
Power
Power Consumption: 22.57 watt
Physical Characteristics
Form Factor: Ceiling Mountable, Wall Mountable
Dimensions and Weight
Height: 1.3 inch
Width: 8.7 inch
Depth: 8.7 inch
