Product Information

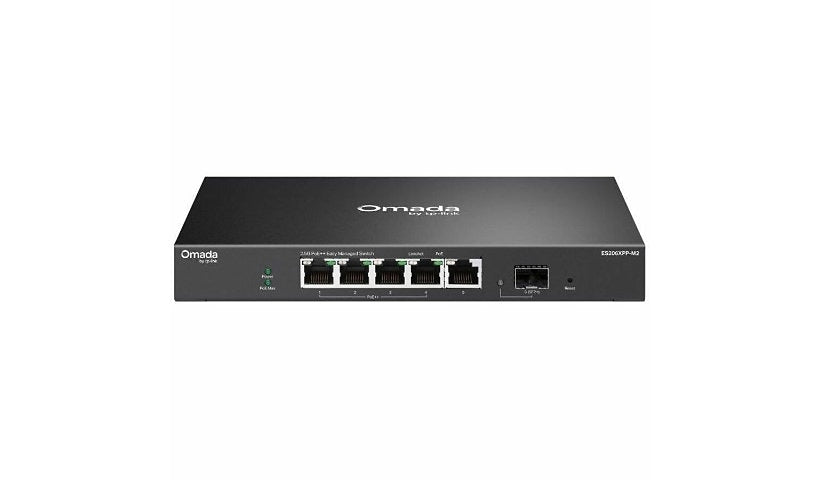

TP-Link's Omada ES206XPP-M2 is a fanless easy managed switch with five 2.5G ports, four of them PoE++ at up to 90 W, plus one 10G SFP+ slot. It has a 120 W PoE budget, VLAN, QoS and loop protection, with Omada cloud or app management.
Key Features
- 5 x 2.5G RJ-45 ports
- 4 x PoE++ ports, up to 90 W
- 1 x 10G SFP+ slot
- 120 W PoE budget
- Easy managed, Omada cloud
- Fanless, desktop or wall mount
Product Information
Brand: Omada
Manufacturer: TP-LINK Technologies Co., Ltd
Model: ES206XPP-M2
Product Type: Ethernet Switch
Usage: Business, Gaming Computer, Gaming Console, IP Surveillance Network, NAS, Network, PC, Printer, Server, Traffic, TV, Wireless Access Point, Workstation
Included Quantity: 1
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Technology: 10GBase-X, 2.5GBase-T
Layer Supported: 2
Manageable: Yes
Max Data Transfer Rate: 1.25 GBps
Features: Auto-negotiation, Broadcast Storm Control, Cable Diagnostic, Fanless, Flow Control, IGMP Snooping, Link Aggregation, Loop Protection, Loopback Detection, Multicast Storm Control, Plug and Play, Port Mirroring, Quality of Service (QoS), Remote/Cloud Management, Unicast Storm Control, Virtual LAN (VLAN), Zero-Touch Provisioning (ZTP)
Connectivity
Expansion Slot Type: SFP+
Expansion Slot Details: 1 x 10 Gigabit Ethernet Expansion Slot, 1 x 2.5 Gigabit Ethernet Network, 4 x 2.5 Gigabit Ethernet PoE++
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
SFP+ Slots: 1
Uplink Port: Yes
Power
Power Source: AC, Power Adapter
Input Voltage: 120 V AC, 230 V AC
Frequency: 50 hertz, 60 hertz
PoE Budget: 120 watt
Physical Characteristics
Form Factor: Desktop, Wall Mountable
Dimensions and Weight
Height: 1 inch
Width: 8.2 inch
Depth: 5 inch
Weight: 1.48 lb
