Product Information

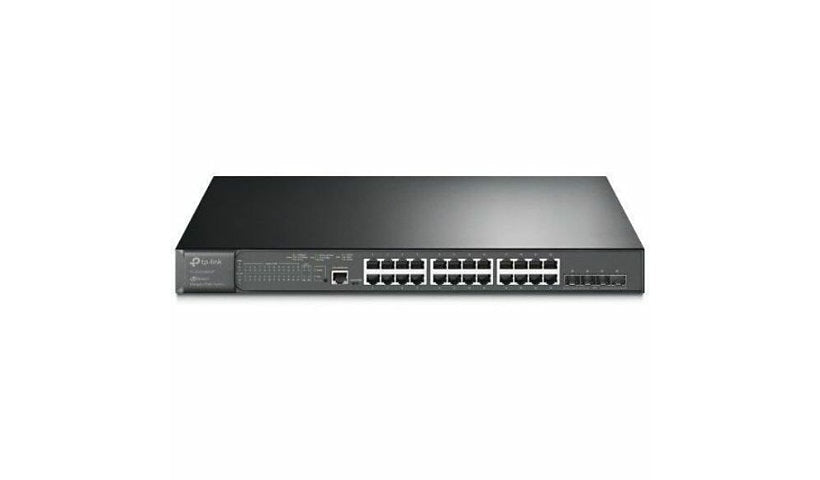

TP-Link's Omada SG3428X is a fanless L2+ managed switch with 24 Gigabit ports and four 10G SFP+ slots. It offers 128 Gbps of switching capacity and 95.23 Mpps, static routing, VLANs and IGMP snooping, and it can be managed through the Omada cloud and app or by CLI and SNMP.
Key Features
- 24 x Gigabit RJ-45 ports
- 4 x 10G SFP+ slots
- 128 Gbps switching, 95.23 Mpps
- L2+, static routing, VLAN
- Omada cloud and app management
- Fanless, 23.6 W max, rack mount
Product Information
Brand: Omada
Manufacturer: TP-LINK Technologies Co., Ltd
Model: SG3428X
Product Type: Ethernet Switch
Usage: Desktop, Gaming Console, IP Camera, IP Phone, NAS, Network, Printer, Traffic, Wireless Access Point
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Data Link Protocols: HTTP, HTTPS
Network Technology: 10/100/1000Base-T, 10GBase-X
Layer Supported: 2
Manageable: Yes
Max Data Transfer Rate: 1.25 GBps
Features: Access Control List, Auto-negotiation, Broadcast Storm Control, Cable Diagnostic, DHCP Relay, DHCP Snooping, Fanless, Flow Control, IGMP Snooping, Link Aggregation, Loopback Detection, Multicast Storm Control, Quality of Service (QoS), Remote Monitoring (RMON), Unicast Storm Control, Virtual LAN (VLAN), Zero-Touch Provisioning (ZTP)
Connectivity
Expansion Slot Type: SFP+
Expansion Slot Details: 24 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Expansion Slot
Network (RJ-45): Yes
SFP+ Slots: 4
Power
Power Source: Power Supply
Input Voltage: 120 V AC, 230 V AC
Frequency: 50 hertz, 60 hertz
Power Consumption: 23.60 watt
Physical Characteristics
Form Factor: Desktop, Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 7.1 inch
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
