Product Information

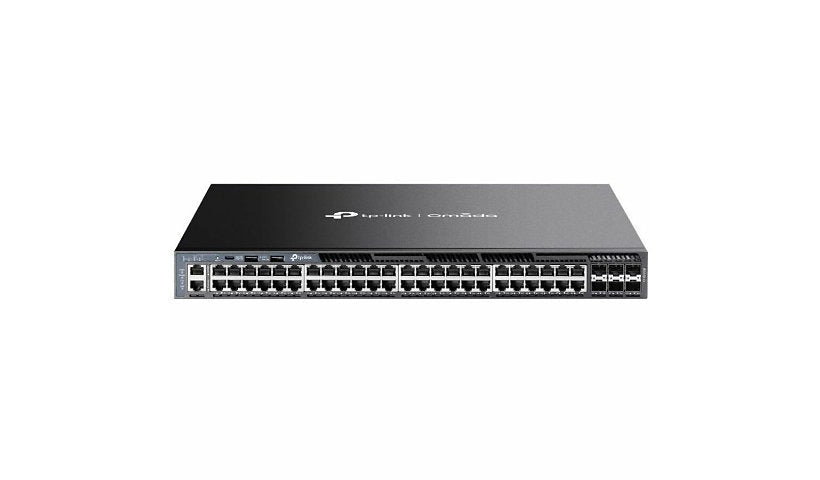

TP-Link's Omada SG6654X is a stackable Layer 3 managed switch with 48 Gigabit ports and six 10G SFP+ slots, for aggregation and core use. It ships with two power supplies for redundancy and supports physical stacking, Layer 3 routing and Omada management.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 6 x 10G SFP+ slots
- Layer 3 routing, physical stacking
- 2 power supplies installed, redundant
- RJ-45 management, console and USB-C
- 1U rack mount
Product Information
Brand: Omada
Manufacturer: TP-LINK Technologies Co., Ltd
Model: SG6654X
Product Type: Layer 3 Switch
Usage: Business, Enterprise, Network, Wireless Access Point
Color Category: Black
Color Family: Black
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 10GBase-X
Layer Supported: 3
Manageable: Yes
Max Data Transfer Rate: 1.25 GBps
Connectivity
Expansion Slot Type: SFP+
Expansion Slot Details: 1 × RJ-45 Management Port, 1 × RJ45 Console Port, 1 × USB Type C, 2 x USB Port, 48 × 10/100/1000BASE-T RJ-45 Network Ports, 6 × 10 Gigabit SFP+ Expansion Slots
Network (RJ-45): Yes
SFP+ Slots: 6
Uplink Port: Yes
Stack Port: Yes
Power
Power Source: Power Supply
Input Voltage: 120 V AC, 230 V AC
Frequency: 50 hertz, 60 hertz
Power Consumption: 39.80 watt
Power Supplies Installed: 2
Redundant Power Supply Supported: Yes
Technical Information
MTBF: 547093 hour
Physical Characteristics
Form Factor: Rack-mountable
Rack Unit: 1U
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 15 inch
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
