Product Information

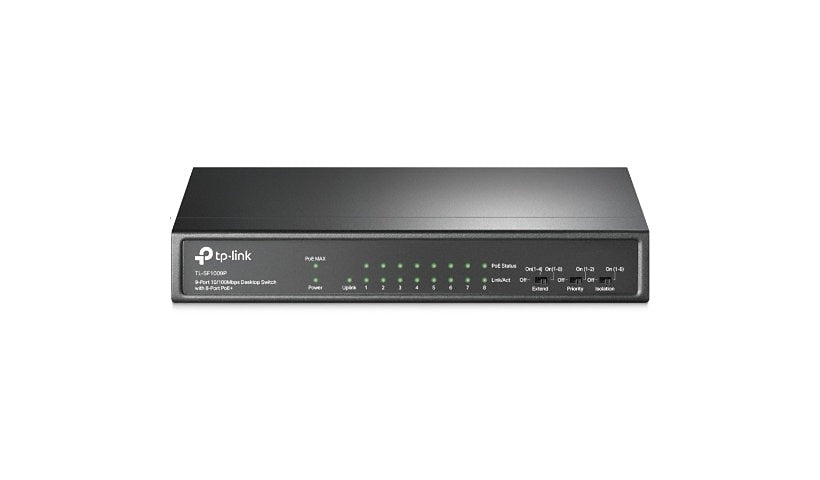

The TP-Link TL-SF1009P is an unmanaged 9-port Fast Ethernet switch with eight PoE+ ports and one uplink port. It provides up to 30 W per port and a 65 W total budget. Extend Mode pushes data and power up to 250 m (at 10 Mbps), which is useful for distant cameras, and Priority Mode gives ports 1 and 2 first place for video or voice.
Key Features
- 8 x 10/100 Mbps PoE+ ports (802.3at/af), up to 30 W each
- 1 x 10/100 Mbps uplink port
- 65 W total PoE budget
- Extend Mode up to 250 m (10 Mbps)
- Priority Mode on ports 1-2
- Unmanaged, plug and play, desktop
Product Information
Brand: TP-Link
Manufacturer: TP-LINK Technologies Co., Ltd
Model: TL-SF1009P
Product Type: Ethernet Switch
Country of Origin: China
Network and Communication
Data Link Protocols: Fast Ethernet
Network Technology: 10/100Base-T
Layer Supported: 2
Manageable: No
Connectivity
Expansion Slot Details: 1 x Fast Ethernet Network, 8 x Fast Ethernet PoE+
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
Uplink Port: Yes
Power
Power Source: Power Adapter
Power Consumption: 3.60 watt
PoE Budget: 65 watt
Physical Characteristics
Form Factor: Desktop
Dimensions and Weight
Height: 1.1 inch
Width: 6.7 inch
Depth: 3.9 inch
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 3 Year
