Product Information

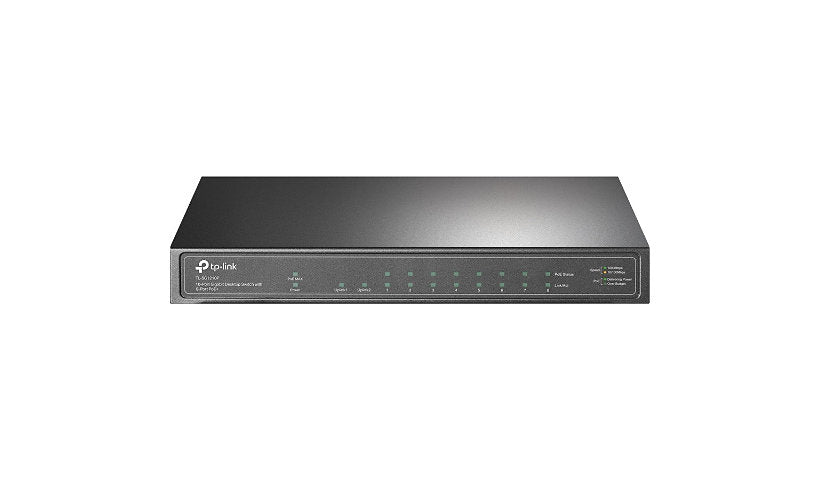

The TP-Link TL-SG1210P is an unmanaged desktop switch with eight Gigabit PoE+ ports, one Gigabit RJ-45 port and one SFP slot for a fiber uplink. Each PoE+ port supplies up to 30 W from a 63 W total budget. Switching capacity is 20 Gbps, and there is nothing to configure.
Key Features
- 8 x Gigabit PoE+ ports, up to 30 W each
- 1 x Gigabit RJ-45 and 1 x Gigabit SFP slot
- 63 W total PoE budget
- 20 Gbps switching capacity, 14.88 Mpps
- Unmanaged, plug and play
- Desktop or wall mount
Product Information
Brand: TP-Link
Manufacturer: TP-LINK Technologies Co., Ltd
Model: TL-SG1210P
Product Type: Ethernet Switch
Country of Origin: China
Network and Communication
Data Link Protocols: Gigabit Ethernet
Network Technology: 1000Base-T, 1000Base-X
Layer Supported: 2
Manageable: No
Connectivity
Expansion Slot Type: SFP (mini-GBIC)
Expansion Slot Details: 1 x Gigabit Ethernet Expansion Slot, 1 x Gigabit Ethernet Network, 8 x Gigabit Ethernet PoE+
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
SFP Slots: 1
Shared SFP Slot: No
Uplink Port: Yes
Power
Power Source: Power Adapter
Power Consumption: 7.11 watt
PoE Budget: 63 watt
Physical Characteristics
Form Factor: Desktop, Wall Mountable
Dimensions and Weight
Height: 1 inch
Width: 8.2 inch
Depth: 5 inch
Warranty
Limited Warranty: 3 Year
