Product Information

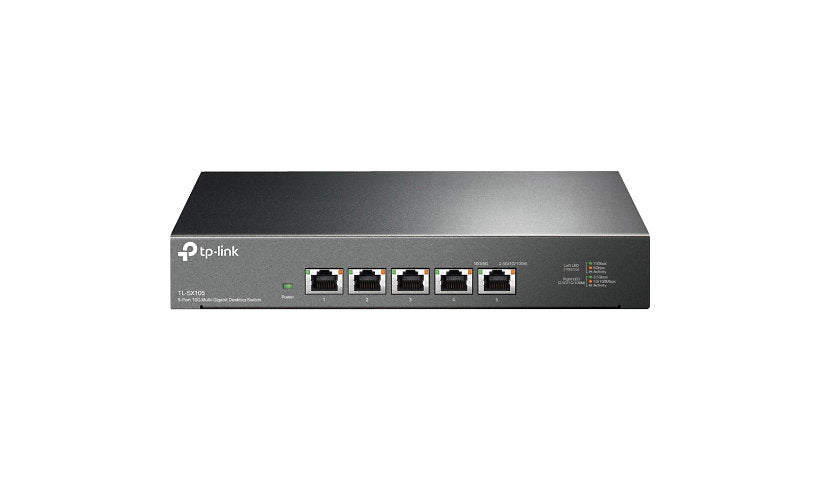

The TP-Link TL-SX105 is an unmanaged desktop switch with five 10GBASE-T ports. Each port negotiates at 100M, 1G, 2.5G, 5G or 10G, so it works with multi-gig NAS units, Wi-Fi 6 access points, 10G network cards and older gear alike. Switching capacity is 100 Gbps, and it runs from a power adapter at about 21.4 W.
Key Features
- 5 x 10GBASE-T RJ-45 ports
- Auto negotiation across 100M/1G/2.5G/5G/10G
- 100 Gbps switching capacity
- Unmanaged, plug and play
- Desktop or wall mount
Product Information
Brand: TP-Link
Manufacturer: TP-LINK Technologies Co., Ltd
Model: TL-SX105
Product Type: Ethernet Switch
Country of Origin: China
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet
Network Technology: 10GBase-T
Layer Supported: 2
Manageable: No
Connectivity
Expansion Slot Details: 5 x 10 Gigabit Ethernet Network
Power
Power Source: Power Adapter
Power Consumption: 21.40 watt
Physical Characteristics
Form Factor: Desktop, Wall Mountable
Dimensions and Weight
Height: 1.4 inch
Width: 8.9 inch
Depth: 5.2 inch
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 3 Year
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
