Product Information

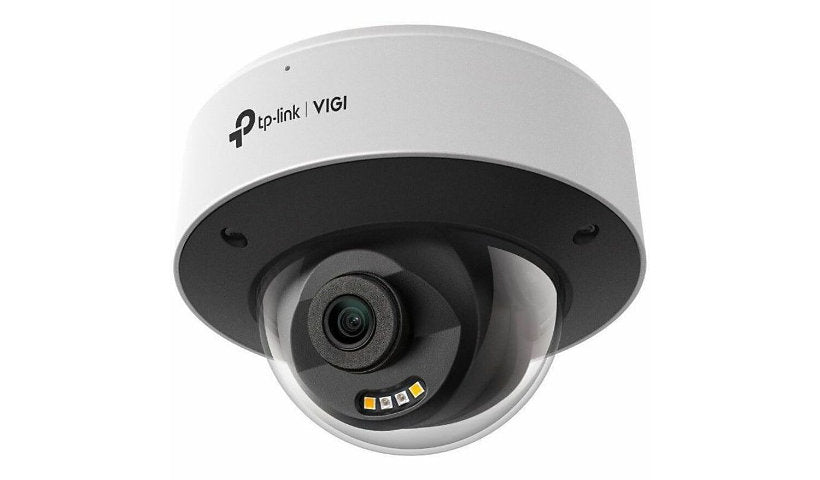

The TP-Link VIGI InSight S285 is an 8 MP dome recording 4K at up to 25 fps through a 2.8 mm lens with a 110 degree horizontal view, in color day and night. It has a built in mic, two way audio, Active Defense, human and vehicle detection, night vision up to 98 ft, and an IP67 and IK10 rated housing, on 12 V DC or PoE at up to 12.3 W.
Key Features
- 8 MP 4K, 25 fps
- 2.8 mm, 110 degrees
- Full color night view
- Two way audio
- IP67 and IK10
- 12 V DC or PoE
Product Information
Brand: VIGI
Manufacturer: TP-LINK Technologies Co., Ltd
Product Line: InSight
Model: S285
Product Type: Network Camera
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Fast Ethernet
Remote Management: Yes
Features: 3D Digital Noise Reduction, Alarm Triggering, Built-in Microphone, Day/Night, Human Detection, Mirror, Noise Reduction, Vehicle Detection, White Balance, Wide Dynamic Range
Connectivity
Protocols: ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, RTP, RTSP, SFTP, SSL/TLS, TCP/IP, UDP, UPnP
Network (RJ-45): Yes
Power
Power Source Type: DC, PoE
Max Power Consumption: 12.30 watt
Input Voltage: 12 V DC
Technical Information
Field of View: Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5°
Lens: Yes
Lens Mount Type: M12-mount
HD Recording: Yes
Night Vision Distance: 98.43 ft
Max Focal Length: 2.80 millimetre
Recording Formats: 4K
Max Frame Rate: 25 fps
Video Formats: H.264, H.264+, H.264H, H.265, H.265+, H.265M
Lens Type: Fixed
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -22
Max Operating Temperature: 140
Min Storage Temperature: -40
Max Storage Temperature: 140
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Ceiling Mount, Wall Mount
Dimensions and Weight
Item Diameter: 4.8 inch
Height: 3.5 inch
Width: 4.8 inch
Length: 4.8 inch
Weight: 1.37 lb
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
