Product Information

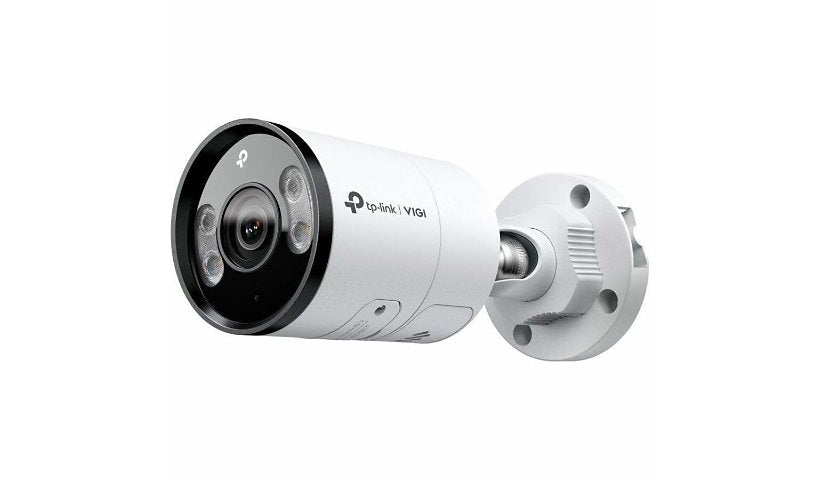

The TP-Link VIGI InSight S345 is a 4 MP outdoor bullet (2688 x 1520 at 30 fps) with a 2.8 mm lens covering 100 degrees horizontally and full color imaging day and night. It has a built in mic, two way audio, Active Defense, human and vehicle detection, night vision up to 98 ft, and IP67, on 12 V DC or PoE at up to 10.7 W.
Key Features
- 4 MP, 2688 x 1520
- 2.8 mm, 100 degrees
- Full color night view
- Human/vehicle detection
- Night vision 98 ft
- IP67, 12 V or PoE
Product Information
Brand: VIGI
Manufacturer: TP-LINK Technologies Co., Ltd
Model: InSight S345
Product Type: Network Camera
Indoor & Outdoor: Outdoor
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Fast Ethernet
Remote Management: Yes
Features: 3D Digital Noise Reduction, Alarm Triggering, Built-in Microphone, Day/Night, Human Detection, Mirror, Noise Reduction, Vehicle Detection, White Balance, Wide Dynamic Range
Connectivity
Protocols: ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, RTP, RTSP, SFTP, SSL/TLS, TCP/IP, UDP, UPnP
Network (RJ-45): Yes
Power
Power Source Type: DC, PoE
Max Power Consumption: 10.70 watt
Input Voltage: 12 V DC
Technical Information
Field of View: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
Ingress Protection Rating: IP67
Lens: Yes
Lens Mount Type: M12-mount
HD Recording: Yes
Night Vision Distance: 98 ft
Max Focal Length: 2.80 millimetre
Max Frame Rate: 30 fps
Video Formats: H.264, H.264+, H.264H, H.265, H.265+, H.265M
Lens Type: Fixed
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -22
Max Operating Temperature: 140
Min Storage Temperature: -40
Max Storage Temperature: 140
Physical Characteristics
Form Factor: Bullet
Camera Mechanical Design: Ceiling Mount, Pole Mount, Wall Mount
Dimensions and Weight
Item Diameter: 2.9 inch
Height: 2.9 inch
Width: 2.9 inch
Length: 7.2 inch
Weight: 1.15 lb
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
